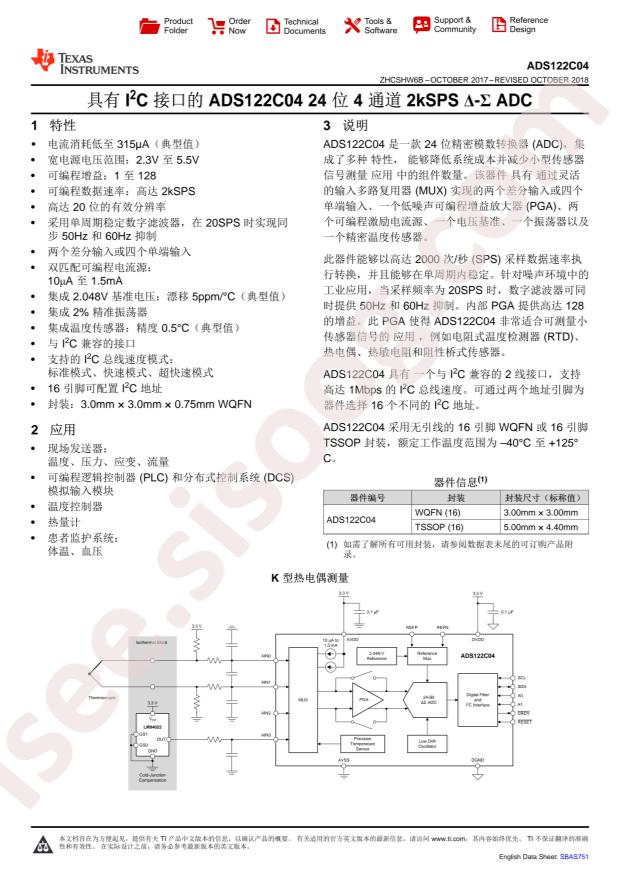

ADS122C04IPWR دیتاشیت

ADS122C04IPWR

مشخصات دیتاشیت

نام دیتاشیت ADS122C04IPWR
حجم فایل 94.009 کیلوبایت
نوع فایل pdf
تعداد صفحات 77

دانلود دیتاشیت ADS122C04IPWR

دانلود دیتاشیت

سایر مستندات

ADS122C04 Datasheet 76 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Texas Instruments ADS122C04IPWR
  • Interface: I2C
  • resolution: 24Bit
  • Supply Voltage: 2.3V~5.5V
  • differential input: Yes
  • number of channels: 4
  • sampling frequency: 2kHz
  • Operating Temperature: -40°C~+125°C
  • Package: TSSOP-16
  • Manufacturer: Texas Instruments
  • Architecture: Sigma-Delta
  • Sampling Rate (Per Second): 2k
  • Series: -
  • Voltage - Supply, Analog: 2.3V ~ 5.5V
  • Input Type: Differential, Single Ended
  • Number of A/D Converters: 1
  • Number of Bits: 24
  • Voltage - Supply, Digital: 2.3V ~ 5.5V
  • Packaging: Cut Tape (CT)
  • Reference Type: Internal
  • Ratio - S/H:ADC: 0:1
  • Configuration: MUX-PGA-ADC
  • Supplier Device Package: 16-TSSOP
  • Data Interface: I²C
  • Base Part Number: ADS122
  • Features: PGA, Temperature Sensor
  • Number of Inputs: 4
  • Mounting Type: Surface Mount
  • Part Status: Active
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width)
  • detail: 24 Bit Analog to Digital Converter 4 Input 1 Sigma-Delta 16-TSSOP
