دیتاشیت VCA821IDGST

VCA821

مشخصات دیتاشیت

نام دیتاشیت VCA821
حجم فایل 2900.416 کیلوبایت
نوع فایل pdf
تعداد صفحات 48

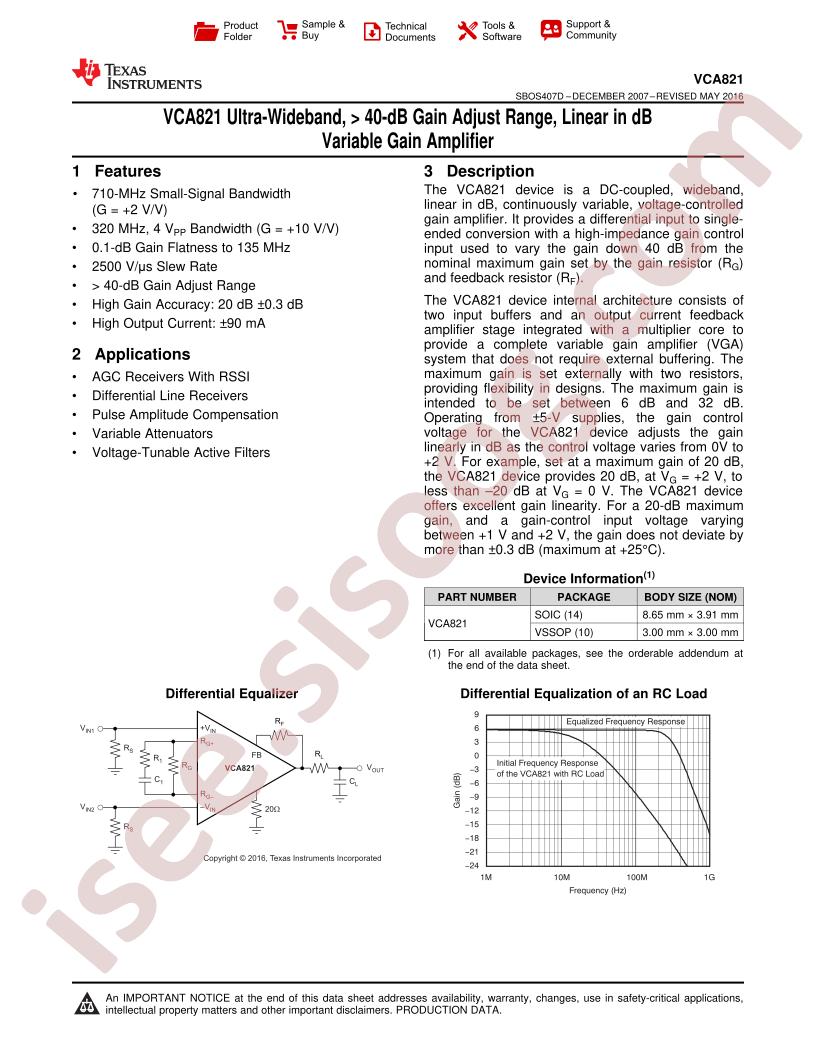

دانلود دیتاشیت VCA821

VCA821 Datasheet

مشخصات

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Programmable/Variable Gain Amplifiers (PGAs/VGAs)
  • Datasheet: Texas Instruments VCA821IDGST
  • Supply Current: 34mA
  • Bandwidth (-3dB): 710MHz
  • Number of Channels: 1
  • Input Bias Current (Ib): 19uA
  • Package: VSSOP-10
  • Manufacturer: Texas Instruments
  • Current - Output / Channel: 90mA
  • Current - Supply: 34mA
  • Voltage - Input Offset: 4mV
  • Supplier Device Package: 10-VSSOP
  • Slew Rate: 2500V/µs
  • -3db Bandwidth: 710MHz
  • Mounting Type: Surface Mount
  • Amplifier Type: Variable Gain
  • Current - Input Bias: 19µA
  • Output Type: -
  • Base Part Number: VCA821
  • Packaging: Cut Tape (CT)
  • Operating Temperature: -40°C ~ 85°C
  • Number of Circuits: 1
  • Series: -
  • Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
  • Part Status: Discontinued at Digi-Key
  • Voltage - Supply, Single/Dual (±): ±3.5V ~ 6V
  • detail: Variable Gain Amplifier 1 Circuit 10-VSSOP
