LMG3411R150RWHR دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت LMG3411R150RWHR	دانلود دیتاشیت

RoHS: true
Feature: Overcurrent Protection(OCP);Thermal Protection(OPT)
Category: Power Supply Chip/Gate Drive ICs

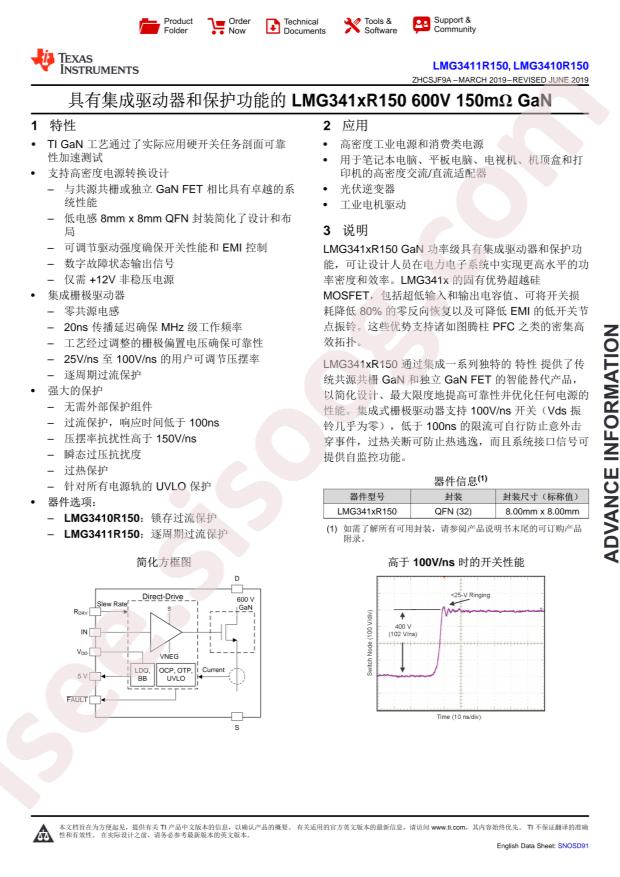

Datasheet: Texas Instruments LMG3410R150RWHR
Supply Voltage: 9.5V~18V
Operating Temperature: -40°C~+125°C@(Tj)
Package: QFN-32-EP(8x8)
Manufacturer: Texas Instruments
Current - Output / Channel: 43A
Current - Peak Output: -
Supplier Device Package: 32-VQFN (8x8)
Applications: AC Motors, DC Motors, General Purpose
Output Configuration: Half Bridge
Load Type: Inductive, Capacitive, Resistive
Features: Bootstrap Circuit
Fault Protection: Over Current, Over Temperature, UVLO
Voltage - Load: 400V
Mounting Type: Surface Mount
Voltage - Supply: 9.5V ~ 18V
Interface: Logic, PWM
Rds On (Typ): 150mOhm LS, 150mOhm HS
Series: -
Package / Case: 32-VQFN Exposed Pad
Part Status: Active
Technology: MOSFET (Metal Oxide)
detail: Half Bridge Driver AC Motors, DC Motors, General Purpose MOSFET (Metal Oxide) 32-VQFN (8x8)
