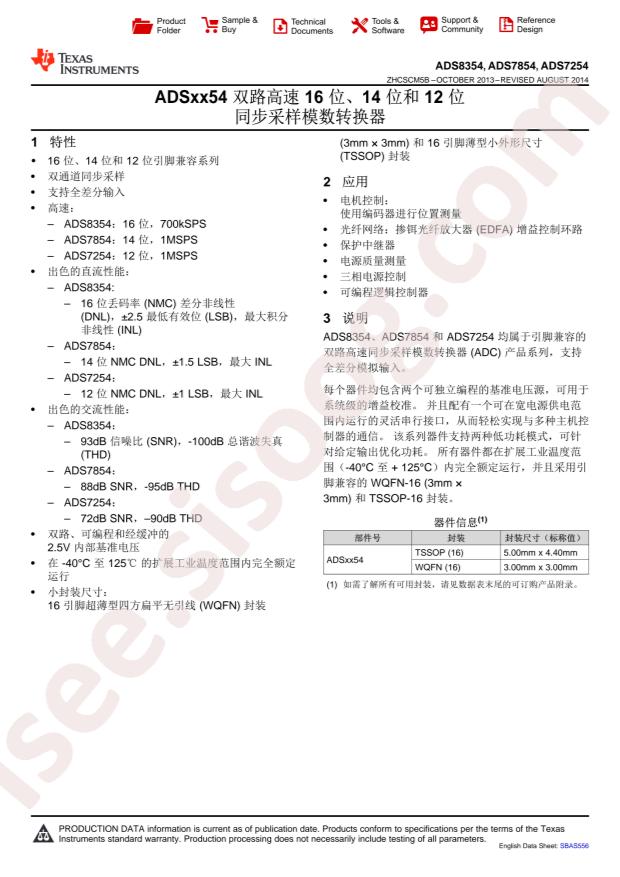

ADS7854IRTER دیتاشیت

ADS7854IRTER

مشخصات دیتاشیت

نام دیتاشیت ADS7854IRTER
حجم فایل 79.612 کیلوبایت
نوع فایل pdf
تعداد صفحات 73

دانلود دیتاشیت ADS7854IRTER

دانلود دیتاشیت

سایر مستندات

ADSxx54 70 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Texas Instruments ADS7854IRTER
  • Interface: SPI
  • resolution: 14Bit
  • Supply Voltage: 5V
  • number of channels: 2
  • sampling frequency: 1MHz
  • Operating Temperature: -40°C~+125°C
  • Package: QFN-16-EP(3x3)
  • Manufacturer: Texas Instruments
  • Architecture: SAR
  • Sampling Rate (Per Second): 1M
  • Series: -
  • Voltage - Supply, Analog: 5V
  • Input Type: Differential
  • Number of A/D Converters: 2
  • Number of Bits: 14
  • Voltage - Supply, Digital: 1.65V ~ 5.5V
  • Packaging: Cut Tape (CT)
  • Reference Type: Internal
  • Ratio - S/H:ADC: 1:1
  • Configuration: S/H-ADC
  • Supplier Device Package: 16-WQFN (3x3)
  • Data Interface: SPI
  • Base Part Number: ADS7854
  • Features: Simultaneous Sampling
  • Number of Inputs: 2
  • Mounting Type: Surface Mount
  • Part Status: Active
  • Package / Case: 16-WFQFN Exposed Pad
  • detail: 14 Bit Analog to Digital Converter 2 Input 2 SAR 16-WQFN (3x3)
