دیتاشیت TPS767D301MPWPREP
مشخصات دیتاشیت
| نام دیتاشیت | TPS767D301-EP |
|---|---|
| حجم فایل | 1443.675 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 23 |

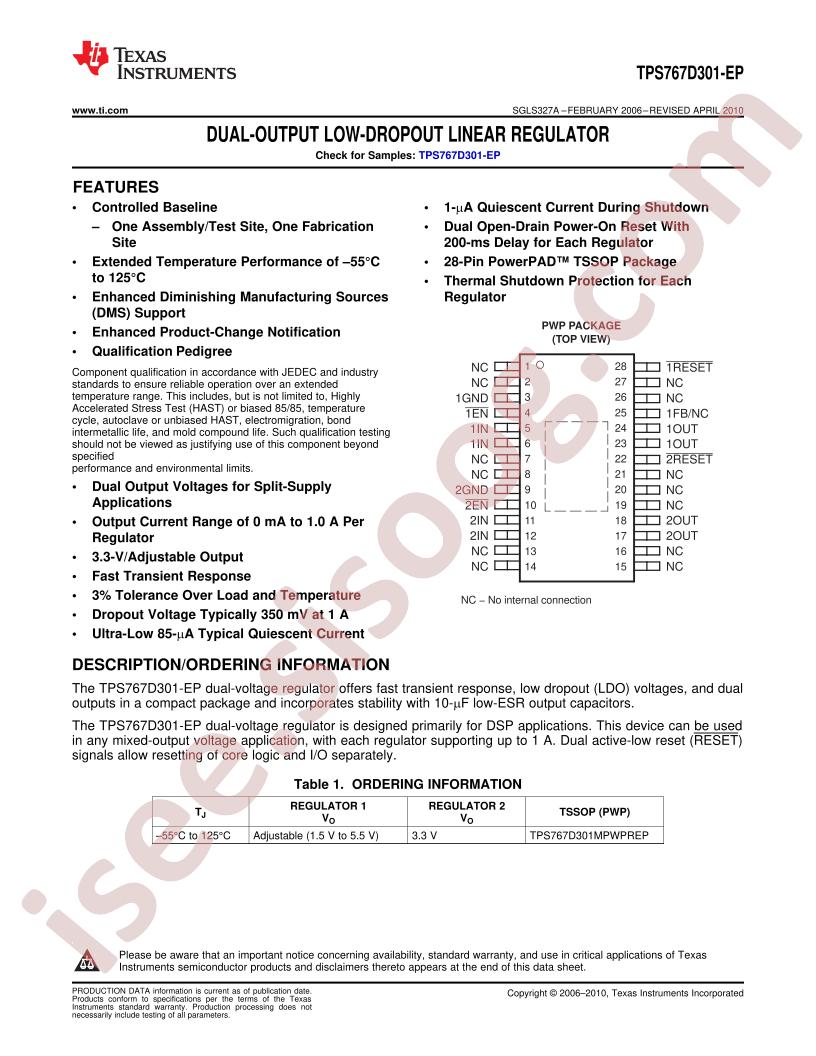

دانلود دیتاشیت TPS767D301-EP |
TPS767D301-EP Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments TPS767D301MPWPREP
- Output Type: -
- Package: TSSOP-28-EP
- Manufacturer: Texas Instruments
- Operating Temperature: -55°C ~ 125°C
- Base Part Number: TPS767
- Supplier Device Package: 28-HTSSOP
- Voltage - Output (Max): 5.5V
- Output Configuration: Positive
- Current - Quiescent (Iq): 125µA
- PSRR: 60dB (1kHz)
- Voltage Dropout (Max): 0.58V @ 1A
- Number of Regulators: 2
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Voltage - Output (Min/Fixed): 1.5V (3.3V)
- Protection Features: Over Current, Over Temperature, Reverse Polarity
- Series: -
- Voltage - Input (Max): 10V
- Current - Output: 1A
- Part Status: Active
- Package / Case: 28-PowerTSSOP (0.173", 4.40mm Width)
- Control Features: Enable, Reset
- detail: Linear Voltage Regulator IC 2 Output 1A 28-HTSSOP
