دیتاشیت ADS1260BIRHBR

مشخصات دیتاشیت

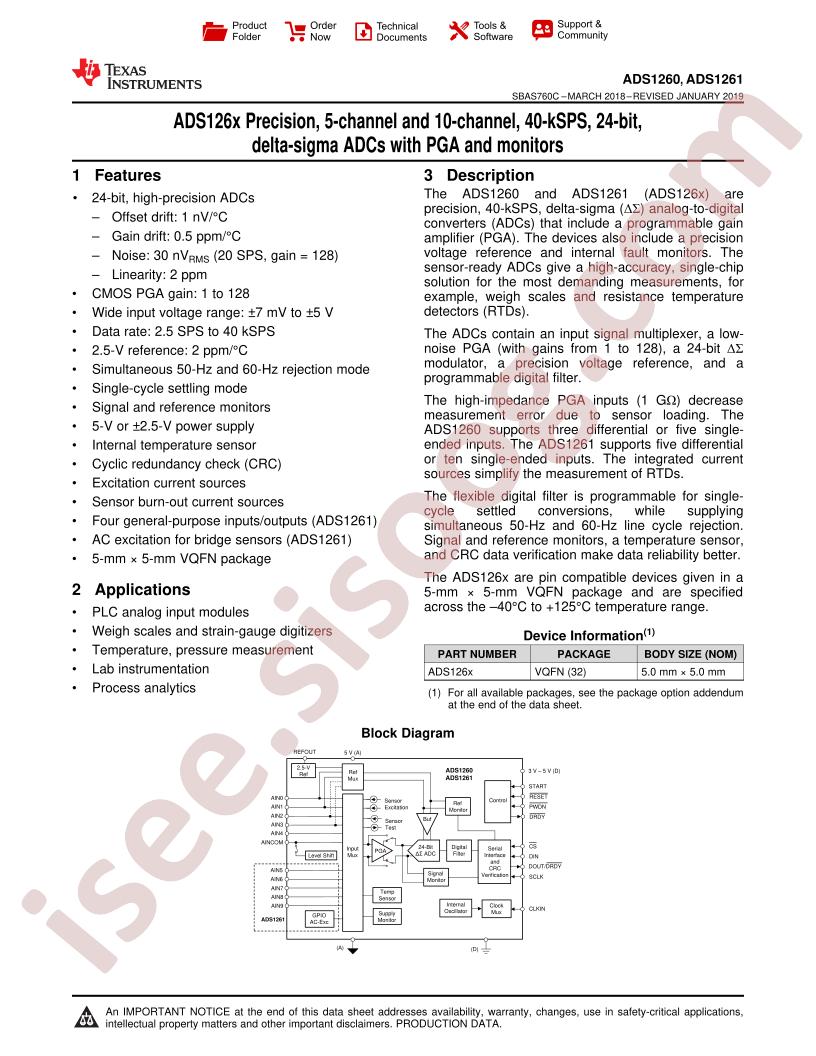

دانلود دیتاشیت ADS1260, ADS1261 Datasheet	ADS1260, ADS1261 Datasheet Datasheet

RoHS: true
Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
Datasheet: Texas Instruments ADS1260BIRHBR
Package: QFN-32-EP(5x5)
Manufacturer: Texas Instruments
Architecture: Sigma-Delta
Sampling Rate (Per Second): 40k
Series: -
Voltage - Supply, Analog: 4.75V ~ 5.25V
Input Type: Differential, Single Ended
Number of A/D Converters: 1
Number of Bits: 24
Voltage - Supply, Digital: 2.7V ~ 5.25V
Packaging: Cut Tape (CT)
Reference Type: External, Internal
Ratio - S/H:ADC: -
Configuration: MUX-PGA-ADC
Supplier Device Package: 32-VQFN (5x5)
Data Interface: SPI
Base Part Number: ADS1260
Features: PGA
Number of Inputs: 5
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Part Status: Active
Package / Case: 32-VFQFN Exposed Pad
detail: 24 Bit Analog to Digital Converter 5 Input 1 Sigma-Delta 32-VQFN (5x5)
