دیتاشیت STP7NB60

STP7NB60(FP)

مشخصات دیتاشیت

نام دیتاشیت STP7NB60(FP)
حجم فایل 273.29 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

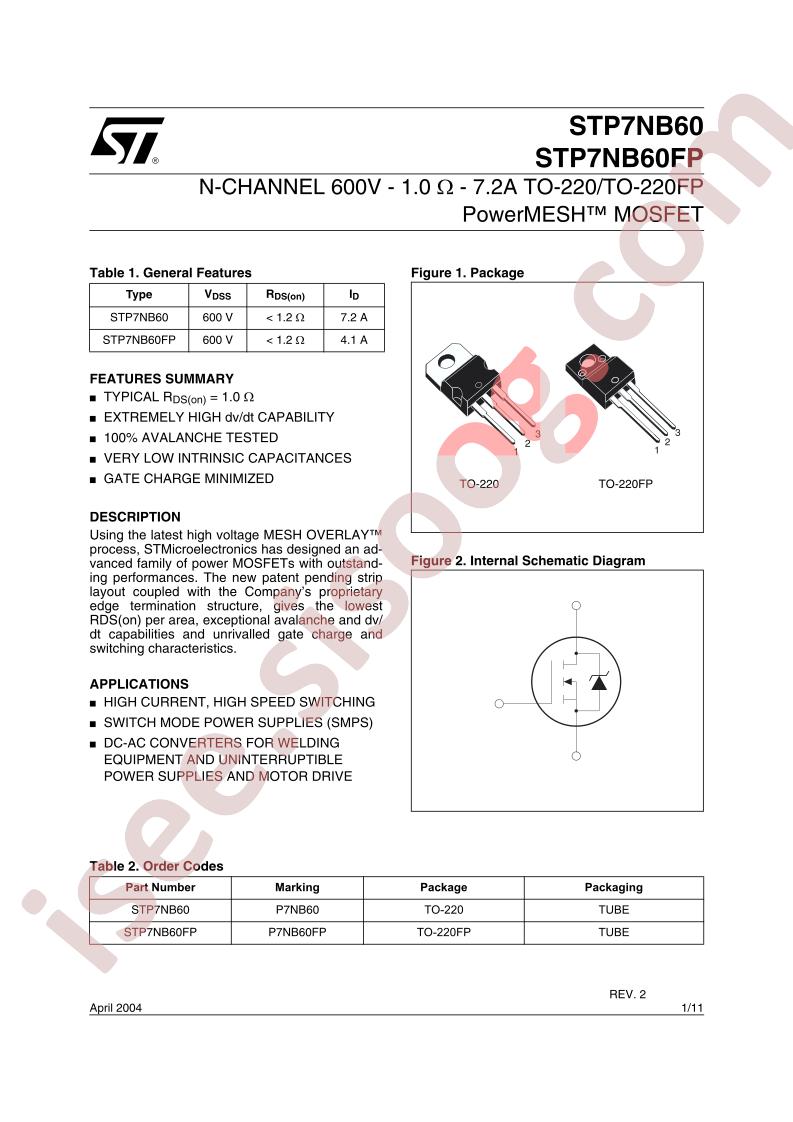

دانلود دیتاشیت STP7NB60(FP)

STP7NB60(FP) Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: PowerMESH™
  • Packaging: Tube
  • Part Status: Obsolete
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 7.2A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 1.2Ohm @ 3.6A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 45nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 1625pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 125W (Tc)
  • Operating Temperature: 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220AB
  • Package / Case: TO-220-3
  • detail: N-Channel 600V 7.2A (Tc) 125W (Tc) Through Hole TO-220AB
