دیتاشیت VN920-B5

VN920(SO,-B5)

مشخصات دیتاشیت

نام دیتاشیت VN920(SO,-B5)
حجم فایل 509.349 کیلوبایت
نوع فایل pdf
تعداد صفحات 23

دانلود دیتاشیت VN920(SO,-B5)

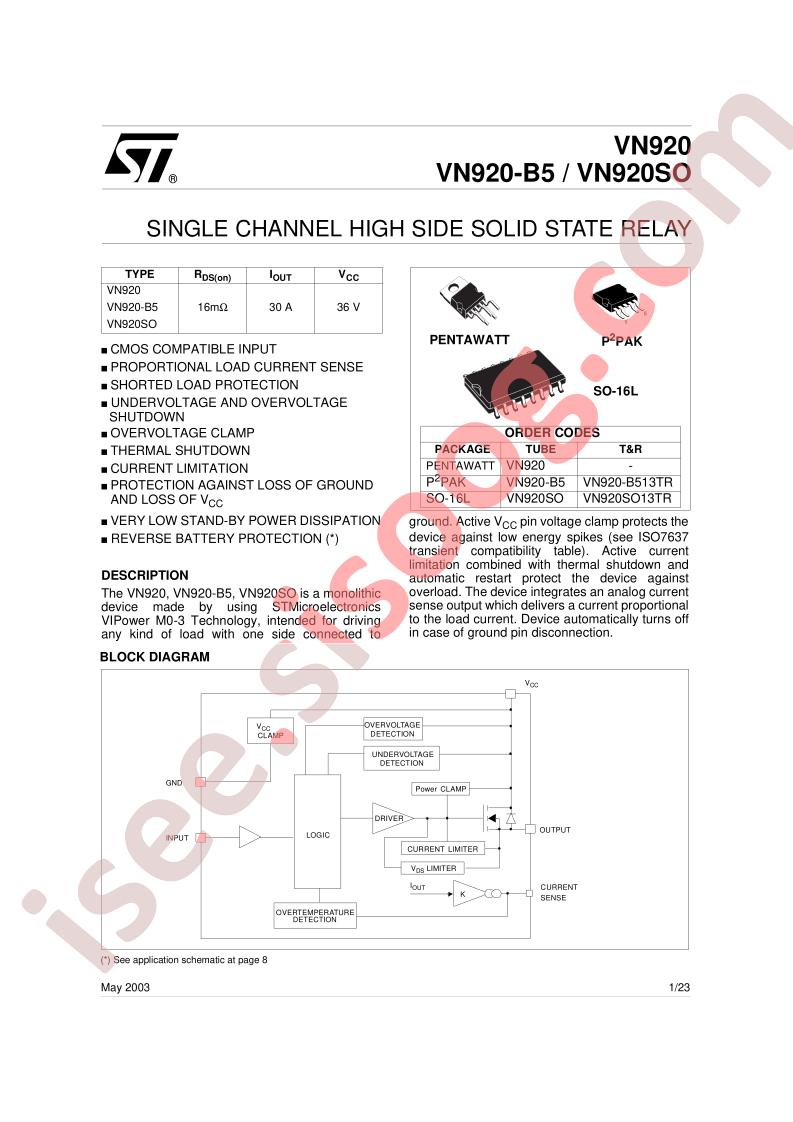

VN920(SO,-B5) Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: VIPower™
  • Packaging: Tube
  • Part Status: Obsolete
  • Switch Type: General Purpose
  • Number of Outputs: 1
  • Ratio - Input:Output: 1:1
  • Output Configuration: High Side
  • Output Type: N-Channel
  • Interface: On/Off
  • Voltage - Load: 5.5V ~ 36V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 30A
  • Rds On (Typ): 16mOhm (Max)
  • Input Type: Non-Inverting
  • Features: Auto Restart
  • Fault Protection: Current Limiting (Fixed), Over Temperature, Over Voltage
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: P2PAK
  • Package / Case: P²PAK (4 Leads + Tab)
  • Base Part Number: VN920
  • detail: Power Switch/Driver 1:1 N-Channel 30A P2PAK
