MPC506A, 507A Datasheet دیتاشیت

مشخصات دیتاشیت

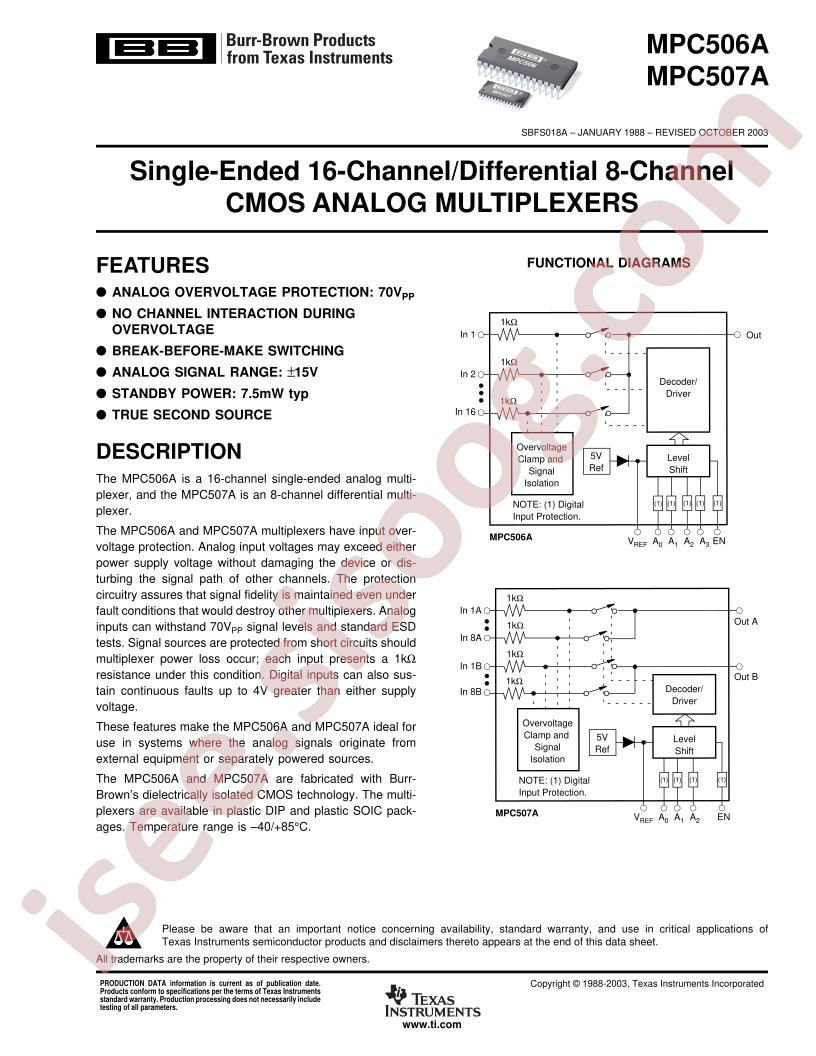

مشاهده دیتاشیت MPC506A, 507A Datasheet	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
Datasheet: Texas Instruments MPC507AU/1K
Turn-on time: 200ns
Turn-off time: 250ns
Switch Circuit: -
Number of Channels: 2
On-State Resistance (Max): 1.5kΩ
Package: SOP-28-300mil
Manufacturer: Texas Instruments
Voltage - Supply, Single (V+): -
Multiplexer/Demultiplexer Circuit: 8:1
Current - Leakage (IS(off)) (Max): 500pA (Typ)
Crosstalk: -
Voltage - Supply, Dual (V±): ±5V ~ 22V
Packaging: Cut Tape (CT)
Channel-to-Channel Matching (ΔRon): -
Charge Injection: -
Supplier Device Package: 28-SOIC
-3db Bandwidth: -
Base Part Number: MPC507
Mounting Type: Surface Mount
Channel Capacitance (CS(off), CD(off)): 5pF, 25pF
Switch Time (Ton, Toff) (Max): 200ns, 250ns (Typ)
Operating Temperature: -40°C ~ 85°C (TA)
Number of Circuits: 2
Series: -
Package / Case: 28-SOIC (0.295", 7.50mm Width)
Part Status: Active
detail: 2 Circuit IC Switch 8:1 1.5kOhm 28-SOIC
