STPS80H100CY دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STPS80H100CY
|
|
حجم فایل
|
42.936
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
STMicroelectronics STPS80H100CY
-
Reverse Voltage (Vr):
100V
-
Forward Voltage (Vf@If):
800mV@40A
-
Average Rectified Current (Io):
40A
-
Package:
TO-247
-
Manufacturer:
STMicroelectronics
-
Series:
Q Automotive
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Diode Configuration:
1 Pair Common Cathode
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
100V
-
Current - Average Rectified (Io) (per Diode):
40A
-
Voltage - Forward (Vf) (Max) @ If:
800mV @ 40A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
20µA @ 100V
-
Operating Temperature - Junction:
175°C (Max)
-
Mounting Type:
Through Hole
-

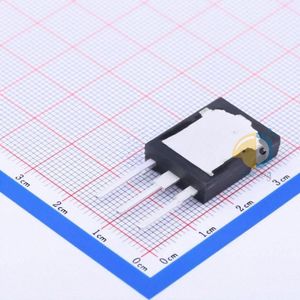

Package / Case:
TO-247-3
-
Supplier Device Package:
MAX247™
-
Base Part Number:
STPS80
-
detail:
Diode Array 1 Pair Common Cathode Schottky 100V 40A Through Hole TO-247-3
