ISO7821LLDWWR دیتاشیت

مشخصات دیتاشیت

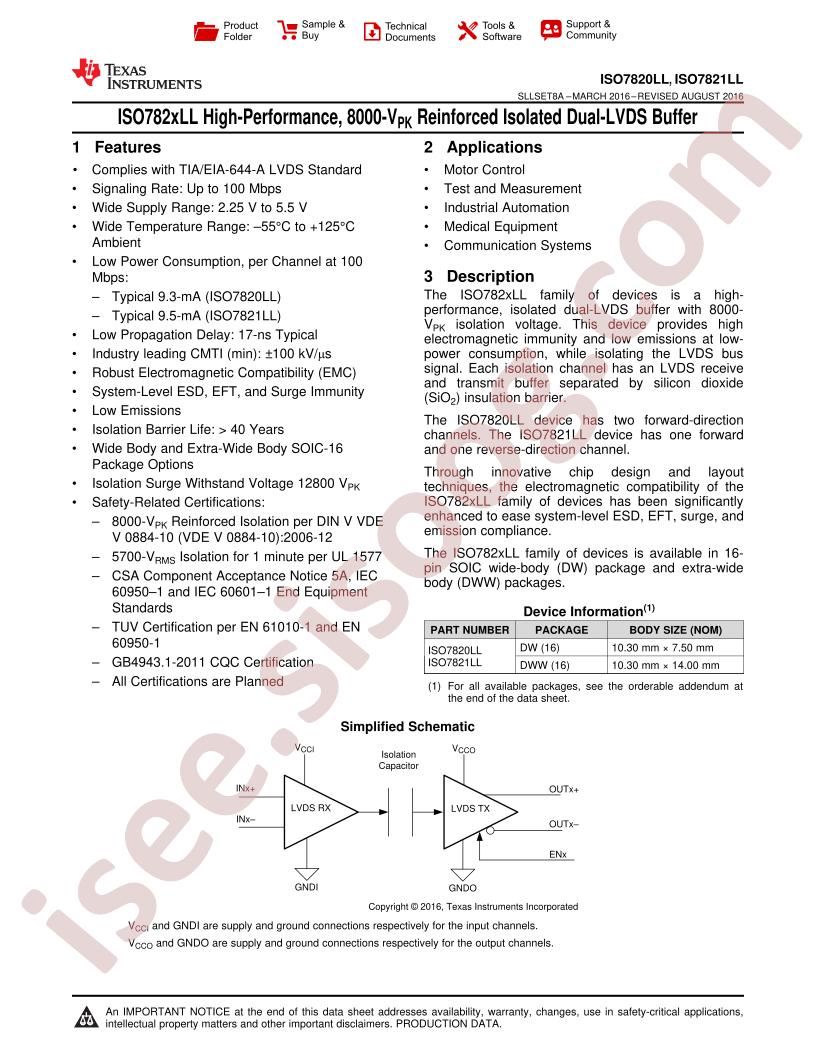

دانلود دیتاشیت ISO7820LL, ISO7821LL Datasheet	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Channel Type: Unidirectional
Pulse Width Distortion (Max): 4.5ns
Type: General Purpose
Number of Channels: 2
Isolated Power: No
Series: -
Packaging: Cut Tape (CT)
Voltage - Supply: 2.25V ~ 5.5V
Propagation Delay tpLH / tpHL (Max): 25ns, 25ns
Common Mode Transient Immunity (Min): 100kV/µs
Data Rate: 100Mbps
Technology: Capacitive Coupling
Supplier Device Package: 16-SOIC
Base Part Number: ISO782
Inputs - Side 1/Side 2: 1/1
Voltage - Isolation: 5700Vrms
Operating Temperature: -55°C ~ 125°C
Mounting Type: Surface Mount
Manufacturer: Texas Instruments
Part Status: Active
Rise / Fall Time (Typ): -
Package / Case: 16-SOIC (0.551", 14.00mm Width)
detail: General Purpose Digital Isolator 5700Vrms 2 Channel 100Mbps 100kV/µs CMTI 16-SOIC (0.551", 14.00mm Width)
