- دیتاشیت TMS5700714APGEQQ1

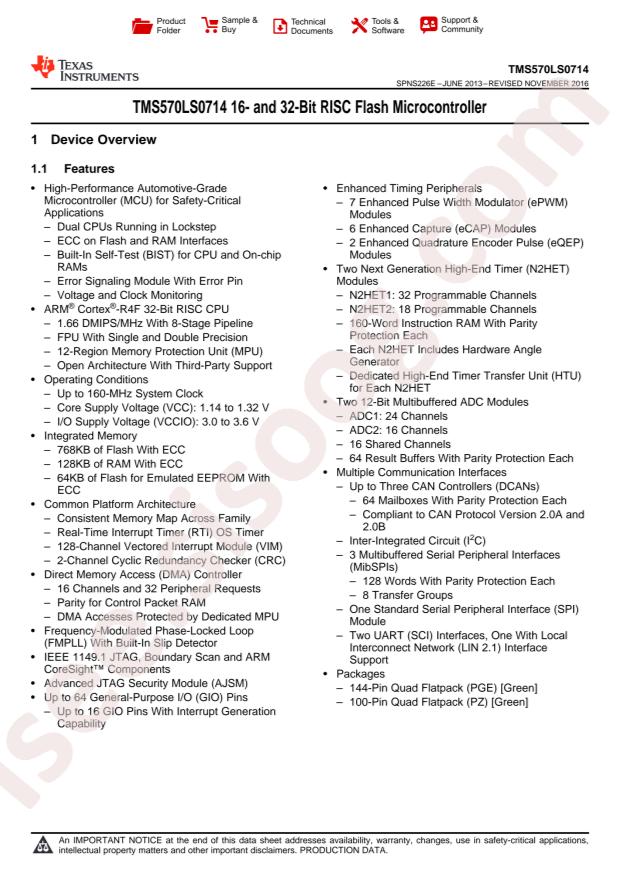

TMS5700714APGEQQ1 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TMS5700714APGEQQ1 |
|---|---|
| حجم فایل | 108.282 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 163 |
دانلود دیتاشیت TMS5700714APGEQQ1 |
دانلود دیتاشیت |
|---|
سایر مستندات
144-LQFP Drawing 2 pages
TMS570LS0714 Datasheet 163 pages
TMS570LS09/07xx Errata 43 pages
TMS570LS09/07xx Errata Rev O 46 pages
TMS570LS9x/07x Technical Manual 1608 pages
مشخصات فنی
- RoHS: true
- CPU Core: ARM-RSeries
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- Watchdog: Yes
- ADC (Bit): 12bit
- Datasheet: Texas Instruments TMS5700714APGEQQ1
- CPU Maximum Speed: 160MHz
- GPIO Ports Number: 64
- Low-Voltage Detect: Yes
- Direct Memory Access: Yes
- Program Storage Size: 768KB
- Operating Voltage Range: 1.14V~3.6V
- Operating Temperature Range: -40°C~+125°C
- Package: LQFP-144(20x20)
- Manufacturer: Texas Instruments
- Series: Automotive, AEC-Q100, Hercules™ TMS570 ARM® Cortex®-R
- EEPROM Size: 64K x 8
- Oscillator Type: External
- Mounting Type: Surface Mount
- Peripherals: DMA, POR, PWM, WDT
- Data Converters: A/D 24x12b
- Packaging: Tray
- Core Processor: ARM® Cortex®-R4F
- Number of I/O: 64
- Program Memory Size: 768KB (768K x 8)
- Core Size: 32-Bit Dual-Core
- Connectivity: CANbus, I²C, LINbus, MibSPI, SCI, SPI, UART/USART
- Voltage - Supply (Vcc/Vdd): 1.14V ~ 3.6V
- Supplier Device Package: 144-LQFP (20x20)
- Base Part Number: TMS570
- Program Memory Type: FLASH
- RAM Size: 128K x 8
- Package / Case: 144-LQFP
- Speed: 160MHz
- Part Status: Active
- Operating Temperature: -40°C ~ 125°C (TA)
- detail: ARM® Cortex®-R4F Automotive, AEC-Q100, Hercules™ TMS570 ARM® Cortex®-R Microcontroller IC 32-Bit Dual-Core 160MHz 768KB (768K x 8) FLASH 144-LQFP (20x20)
