دیتاشیت E-L6902D
مشخصات دیتاشیت
| نام دیتاشیت | L6902 Datasheet |
|---|---|
| حجم فایل | 202.302 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 11 |

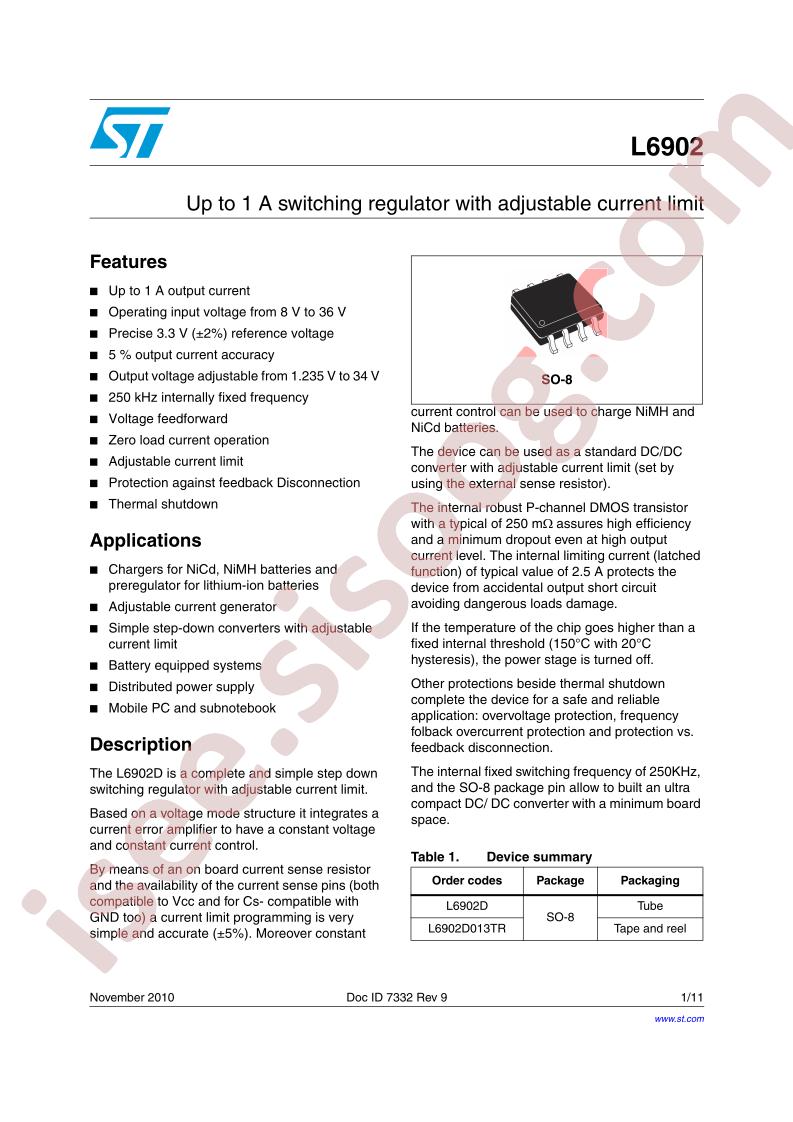

دانلود دیتاشیت L6902 Datasheet |
L6902 Datasheet Datasheet |
|---|
مشخصات
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Tube
- Part Status: Obsolete
- Function: Step-Down
- Output Configuration: Positive
- Topology: Buck
- Output Type: Adjustable
- Number of Outputs: 1
- Voltage - Input (Min): 8V
- Voltage - Input (Max): 36V
- Voltage - Output (Min/Fixed): 1.235V
- Voltage - Output (Max): 34V
- Current - Output: 1A
- Frequency - Switching: 250kHz
- Synchronous Rectifier: No
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SO
- Base Part Number: L6902
- detail: Buck Switching Regulator IC Positive Adjustable 1.235V 1 Output 1A 8-SOIC (0.154", 3.90mm Width)
