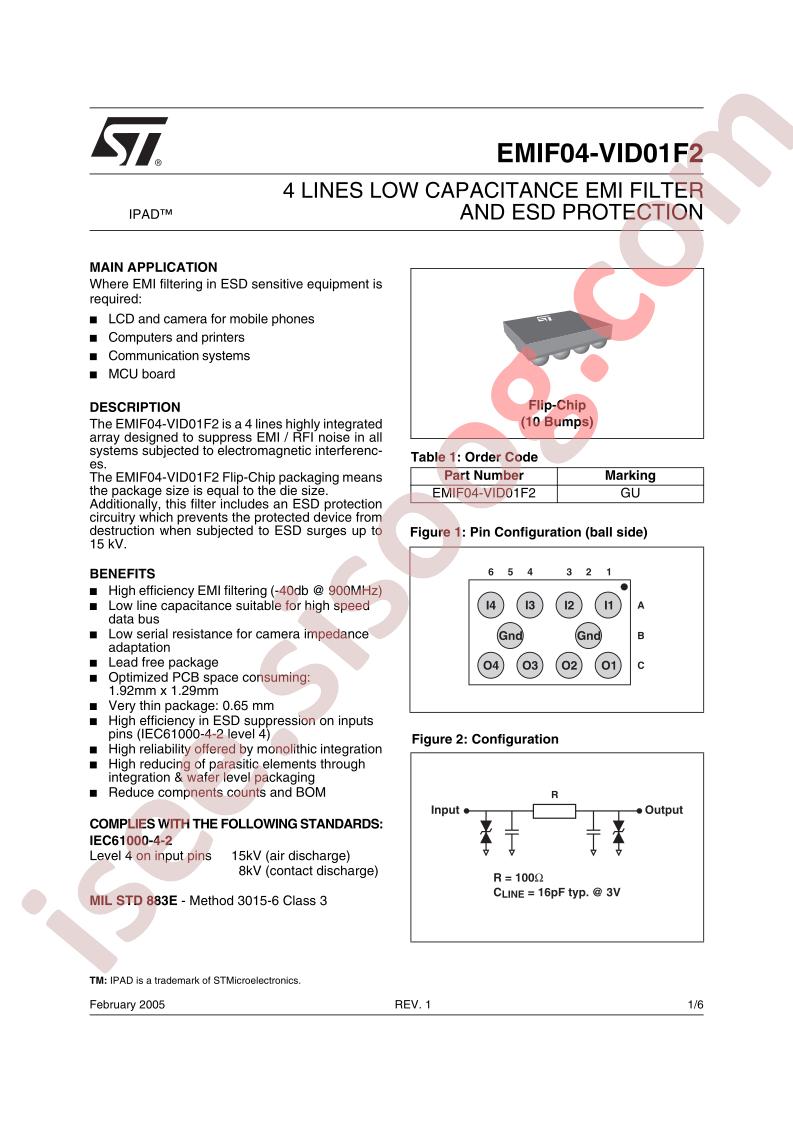

EMIF04-VID01F2 数据手册
其他文档
未找到其他文档！
技术规格
- Manufacturer: STMicroelectronics
- Series: EMIF
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- Type: Low Pass
- Filter Order: 2nd
- Technology: RC (Pi)
- Number of Channels: 4
- Center / Cutoff Frequency: -
- Attenuation Value: -40dB @ 900MHz
- Resistance - Channel (Ohms): 100
- Current: 10mA
- Values: R = 100Ohms, C = 16pF
- ESD Protection: Yes
- Operating Temperature: -40°C ~ 85°C
- Applications: Data Lines for Mobile Devices
- Voltage - Rated: -
- Mounting Type: Surface Mount

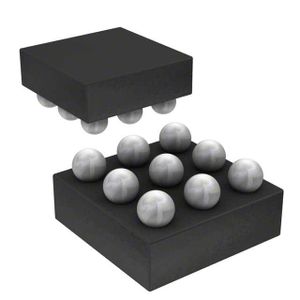

- Package / Case: 10-WFBGA, FCBGA
- Size / Dimension: 0.076" L x 0.051" W (1.92mm x 1.29mm)
- Height: 0.028" (0.70mm)
- Base Part Number: EMIF04
- detail: RC (Pi) EMI Filter 2nd Order Low Pass 4 Channel R = 100Ohms, C = 16pF 10mA 10-WFBGA, FCBGA
