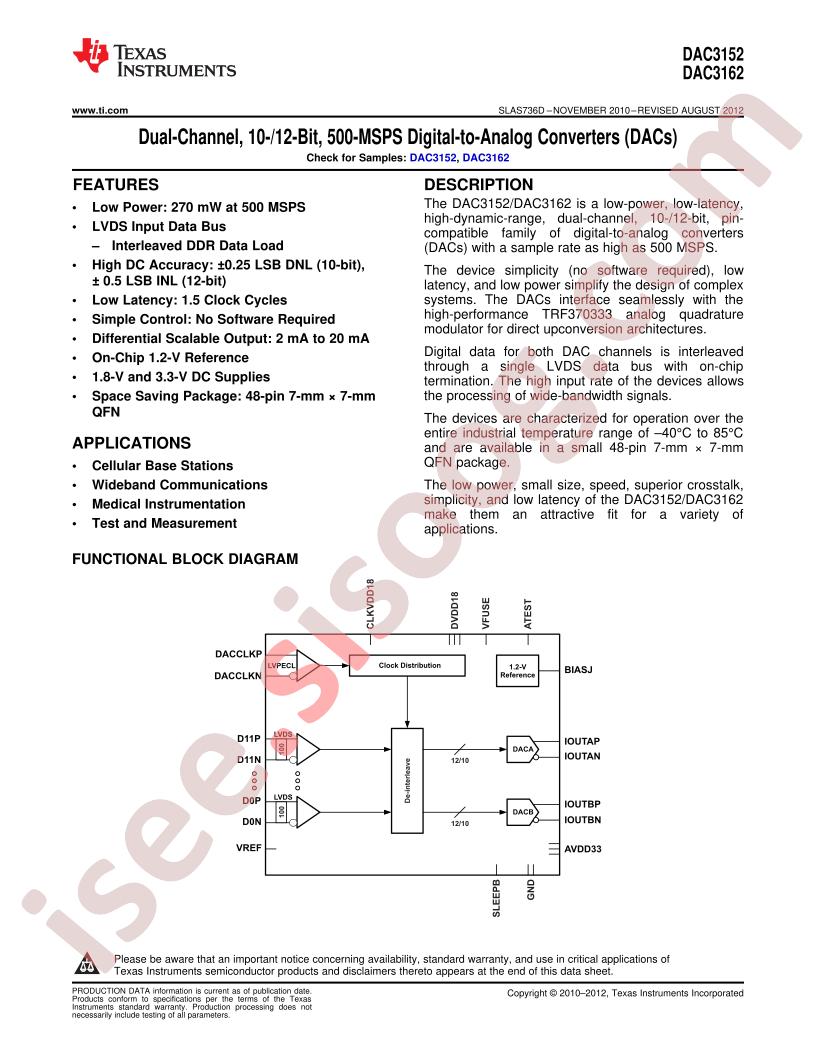

DAC3152,62 دیتاشیت

DAC3152,62

مشخصات دیتاشیت

نام دیتاشیت DAC3152,62
حجم فایل 2153.882 کیلوبایت
نوع فایل pdf
تعداد صفحات 32

دانلود دیتاشیت DAC3152,62

دانلود دیتاشیت

سایر مستندات

TI DAC3152IRGZR 32 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Texas Instruments DAC3152IRGZT
  • Interface: Parallel
  • resolution: 10
  • output type: Current-非缓冲
  • built-up time: 10ns
  • Supply Voltage: 1.7V~1.9V
  • Integral nonlinearity: ±0.15LSB;±0.1LSB
  • Operating Temperature: -40°C~+85°C
  • Package: QFN-48-EP(7x7)
  • Manufacturer: Texas Instruments
  • Voltage - Supply, Analog: 3V ~ 3.6V
  • Supplier Device Package: 48-VQFN (7x7)
  • Data Interface: LVDS - Parallel
  • Number of D/A Converters: 2
  • Mounting Type: Surface Mount
  • Settling Time: 10ns (Typ)
  • Number of Bits: 10
  • Architecture: Current Sink
  • Voltage - Supply, Digital: 1.7V ~ 1.9V
  • Packaging: Cut Tape (CT)
  • Differential Output: Yes
  • Reference Type: Internal
  • Series: -
  • Package / Case: 48-VFQFN Exposed Pad
  • INL/DNL (LSB): ±0.15, ±0.1
  • Base Part Number: DAC3152
  • Part Status: Active
  • detail: 10 Bit Digital to Analog Converter 2 48-VQFN (7x7)
