DAC7741 Datasheet دیتاشیت

DAC7741 Datasheet

مشخصات دیتاشیت

نام دیتاشیت DAC7741 Datasheet
حجم فایل 1016.013 کیلوبایت
نوع فایل pdf
تعداد صفحات 23

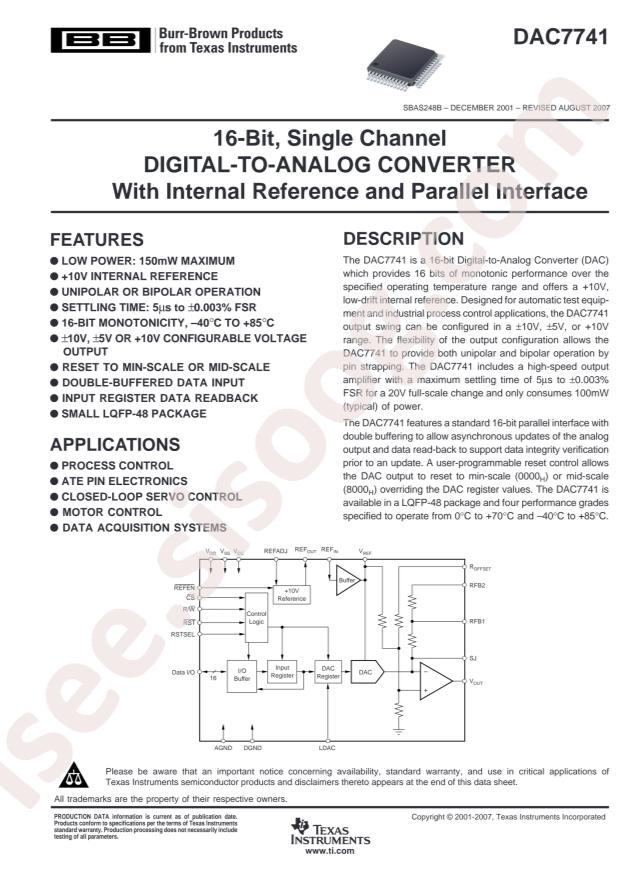

مشاهده دیتاشیت DAC7741 Datasheet

دانلود دیتاشیت

سایر مستندات

TI DAC7741YL/250 23 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Texas Instruments DAC7741YB/250
  • Interface: Parallel
  • resolution: 16
  • output type: Voltage-缓冲
  • built-up time: 5us
  • Supply Voltage: 5V
  • Integral nonlinearity: ±4LSB;±2LSB
  • Operating Temperature: -40°C~+85°C
  • Package: LQFP-48(7x7)
  • Manufacturer: Texas Instruments
  • Voltage - Supply, Analog: ±11.4V ~ 15.75V, -4.75V ~ -15.75V
  • Supplier Device Package: 48-LQFP (7x7)
  • Data Interface: Parallel
  • Number of D/A Converters: 1
  • Mounting Type: Surface Mount
  • Settling Time: 5µs
  • Number of Bits: 16
  • Architecture: R-2R
  • Voltage - Supply, Digital: 5V
  • Packaging: Cut Tape (CT)
  • Differential Output: No
  • Reference Type: External, Internal
  • Series: -
  • Package / Case: 48-LQFP
  • INL/DNL (LSB): ±4 (Max), ±2 (Max)
  • Base Part Number: DAC7741
  • Part Status: Active
  • detail: 16 Bit Digital to Analog Converter 1 48-LQFP (7x7)
