دیتاشیت L4940V10

L4940xx

مشخصات دیتاشیت

نام دیتاشیت L4940xx
حجم فایل 1597.425 کیلوبایت
نوع فایل pdf
تعداد صفحات 23

دانلود دیتاشیت L4940xx

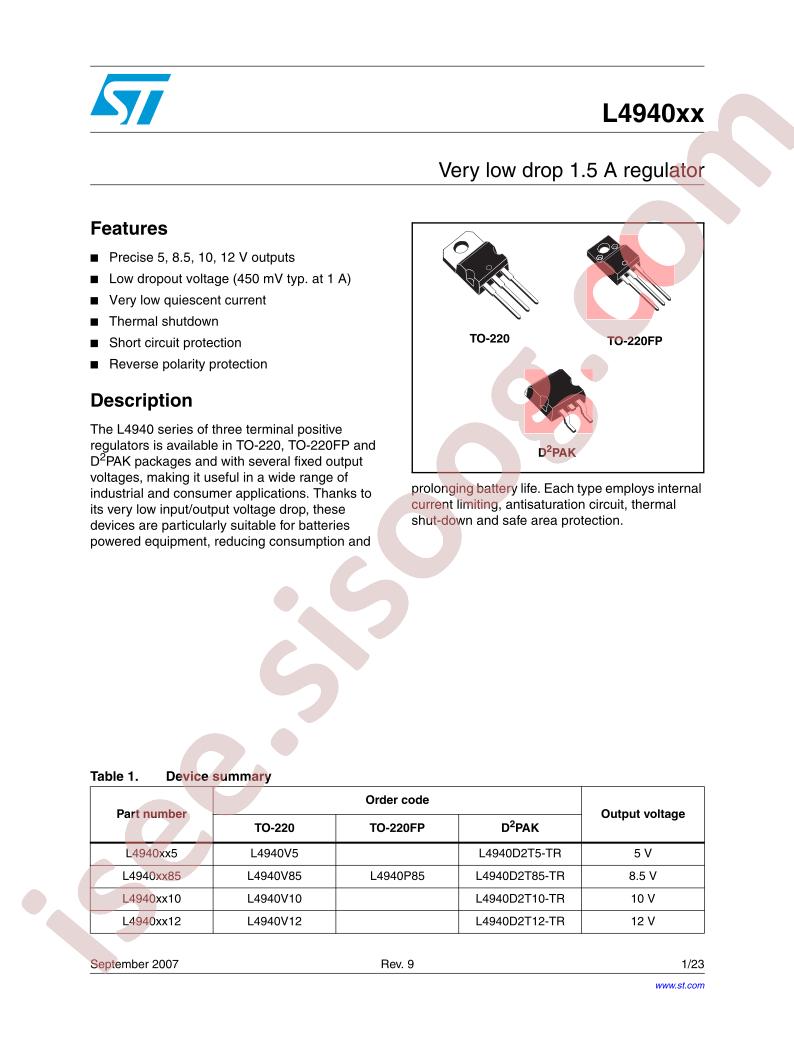

L4940xx Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 17V
  • Voltage - Output (Min/Fixed): 10V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.9V @ 1.5A
  • Current - Output: 1.5A
  • Current - Quiescent (Iq): 8mA
  • Current - Supply (Max): 50mA
  • PSRR: 62dB (120Hz)
  • Control Features: -
  • Protection Features: Over Temperature, Reverse Polarity, Short Circuit
  • Operating Temperature: -40°C ~ 150°C
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220AB
  • Base Part Number: L4940
  • detail: Linear Voltage Regulator IC 1 Output 1.5A TO-220AB
