دیتاشیت TMS5703137CGWTQEP

TMS570LS3137-EP

مشخصات دیتاشیت

نام دیتاشیت TMS570LS3137-EP
حجم فایل 5688.111 کیلوبایت
نوع فایل pdf
تعداد صفحات 157

دانلود دیتاشیت TMS570LS3137-EP

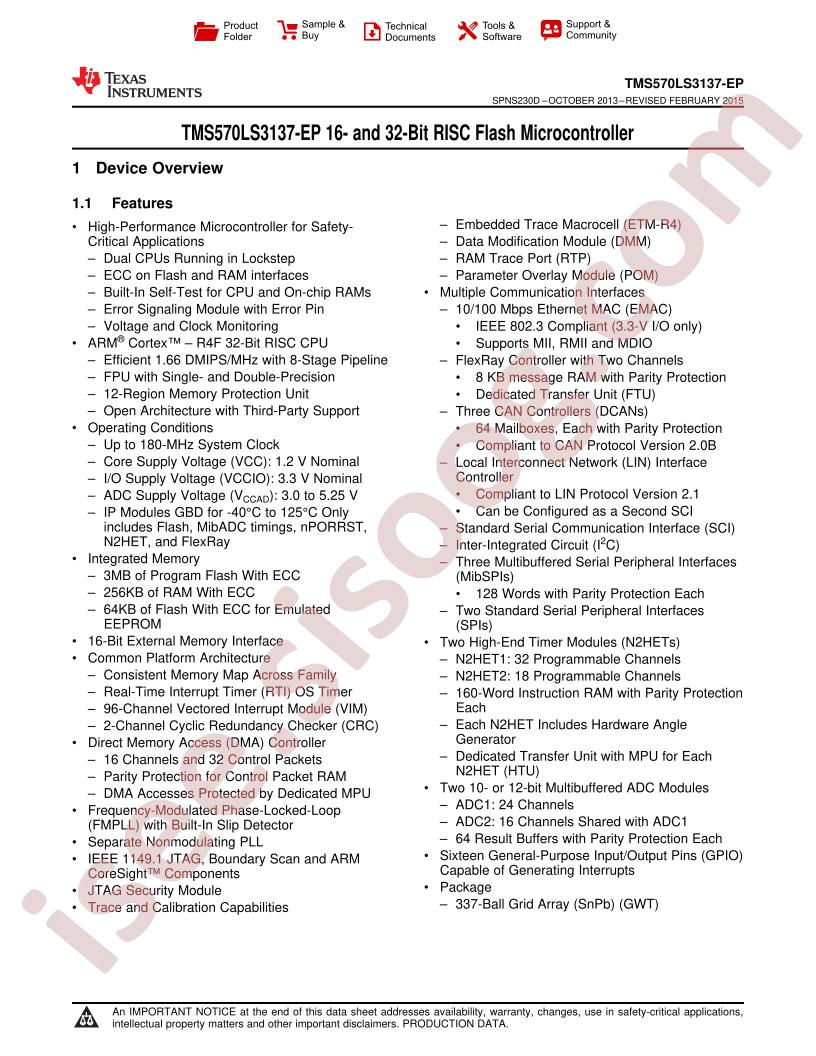

TMS570LS3137-EP Datasheet

مشخصات

  • CAN: -
  • I2C: -
  • I2S: -
  • SPI: -
  • RoHS: true
  • EEPROM: 3MB
  • CPU Core: ARM-RSeries
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: 256KB
  • Watchdog: Yes
  • ADC (Bit): -
  • DAC (Bit): -
  • Datasheet: Texas Instruments TMS5703137CGWTQEP
  • PWM (Bit): -
  • 8Bit Timer: -
  • UART/USART: -
  • 16Bit Timer: -
  • 32Bit Timer: -
  • Real-Time Clock: -
  • CPU Maximum Speed: 180MHz
  • GPIO Ports Number: 120
  • Low-Voltage Detect: -
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: Yes
  • Peripheral/Function: Ethernet protocol stack;LIN(Local Interconnect Network);WDT;DMA;PWM
  • Program Memory Type: FLASH
  • Direct Memory Access: Yes
  • Program Storage Size: 3MB
  • Universal Serial Bus: -
  • communication protocol: 以太网协议
  • Operating Voltage Range: 1.14V~1.32V
  • Infrared Data Association: -
  • Operating Temperature Range: -40°C~+125°C
  • Secure Digital Input and Output: -
  • Package: BGA-337
  • Manufacturer: Texas Instruments
  • Series: Hercules™ TMS570 ARM® Cortex®-R
  • EEPROM Size: -
  • Oscillator Type: External
  • Mounting Type: Surface Mount
  • Peripherals: DMA, POR, PWM, WDT
  • Data Converters: A/D 16x12b, 24x12b
  • Packaging: Tube
  • Core Processor: ARM® Cortex®-R4F
  • Number of I/O: 120
  • Program Memory Size: 3MB (3M x 8)
  • Core Size: 16/32-Bit
  • Connectivity: CANbus, EBI/EMI, Ethernet, FlexRay, I²C, LINbus, MibSPI, SCI, SPI, UART/USART
  • Voltage - Supply (Vcc/Vdd): 1.14V ~ 1.32V
  • Supplier Device Package: 337-NFBGA (16x16)
  • Base Part Number: TMS570
  • Package / Case: 337-LFBGA
  • Speed: 180MHz
  • Part Status: Active
  • Operating Temperature: -40°C ~ 125°C (TA)
  • detail: ARM® Cortex®-R4F Hercules™ TMS570 ARM® Cortex®-R Microcontroller IC 16/32-Bit 180MHz 3MB (3M x 8) FLASH 337-NFBGA (16x16)
