دیتاشیت CD74HCT32E

CD54,74HC(T)32

مشخصات دیتاشیت

نام دیتاشیت CD54,74HC(T)32
حجم فایل 988.191 کیلوبایت
نوع فایل pdf
تعداد صفحات 17

دانلود دیتاشیت CD54,74HC(T)32

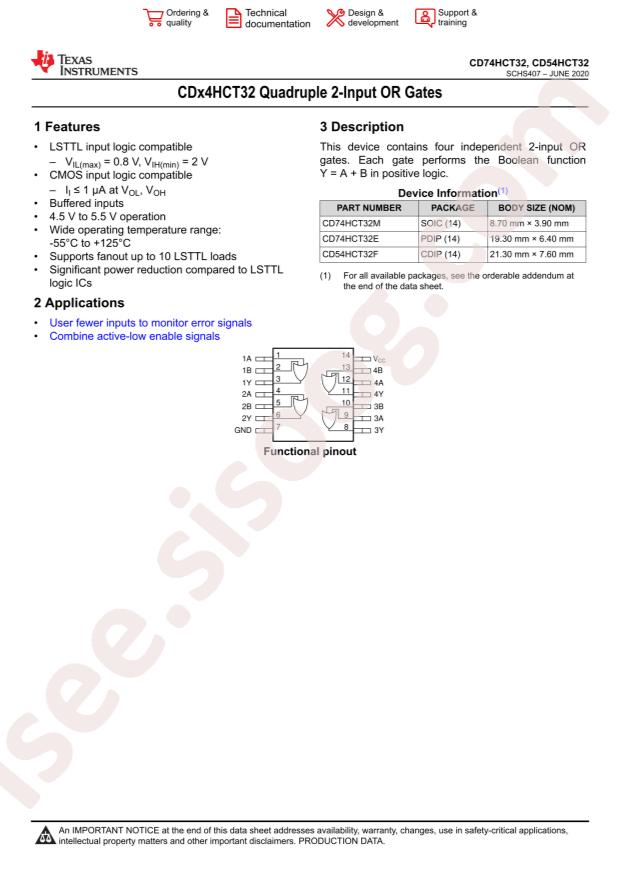

CD54,74HC(T)32 Datasheet

مشخصات

  • RoHS: true
  • Series: 74HCT
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments CD74HCT32E
  • Sink Current: 4mA
  • Source Current: 4mA
  • Supply Voltage: 4.5V~5.5V
  • Logic Gate Type: ORGate
  • Number of Channels: 4
  • Low Level Range (VIL): 0.8V
  • Operating Temperature: -55°C~+125°C
  • High Level Range (VIH): 2V
  • Propagation Delay Time: 24ns@4.5V,50pF
  • Quiescent Current (Max): 2uA
  • Package: PDIP-14
  • Manufacturer: Texas Instruments
  • Logic Level - High: 2V
  • Base Part Number: 74HCT32
  • Supplier Device Package: 14-PDIP
  • Logic Level - Low: 0.8V
  • Package / Case: 14-DIP (0.300", 7.62mm)
  • Current - Quiescent (Max): 2µA
  • Current - Output High, Low: 4mA, 4mA
  • Features: -
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Voltage - Supply: 4.5V ~ 5.5V
  • Number of Circuits: 4
  • Max Propagation Delay @ V, Max CL: 24ns @ 4.5V, 50pF
  • Number of Inputs: 2
  • Part Status: Active
  • Logic Type: OR Gate
  • detail: OR Gate IC 4 Channel 14-PDIP
