دیتاشیت CD74HC4024E
مشخصات دیتاشیت
| نام دیتاشیت | CD54,74HC(T)4024 |
|---|---|
| حجم فایل | 1069.993 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 19 |
دانلود دیتاشیت CD54,74HC(T)4024 |

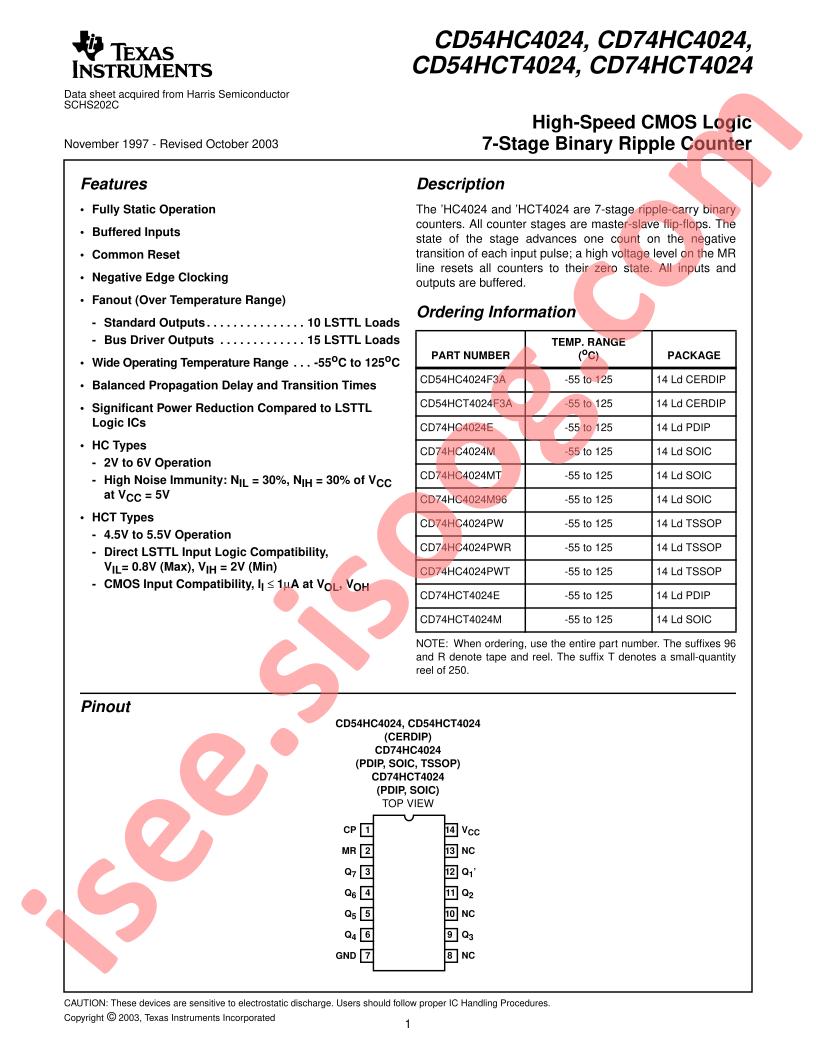

CD54,74HC(T)4024 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Logic ICs/Counters / Dividers
- Datasheet: Texas Instruments CD74HC4024E
- Direction: 向上计数器
- Count Rate: 35MHz
- Logic Type: Binary Counter
- Reset Style: Asynchronous
- Timing mode: -
- Trigger Type: Negative Edge
- Supply Voltage: 2V~6V
- Number of Elements: 1
- Operating Temperature: -55°C~+125°C
- Number of Bits per Element: 7
- Package: PDIP-14
- Manufacturer: Texas Instruments
- Base Part Number: 74HC4024
- Supplier Device Package: 14-PDIP
- Voltage - Supply: 2V ~ 6V
- Part Status: Active
- Reset: Asynchronous
- Mounting Type: Through Hole
- Packaging: Tube
- Timing: -
- Series: 74HC
- Package / Case: 14-DIP (0.300", 7.62mm)
- detail: Counter IC Binary Counter 1 Element 7 Bit Negative Edge 14-PDIP
