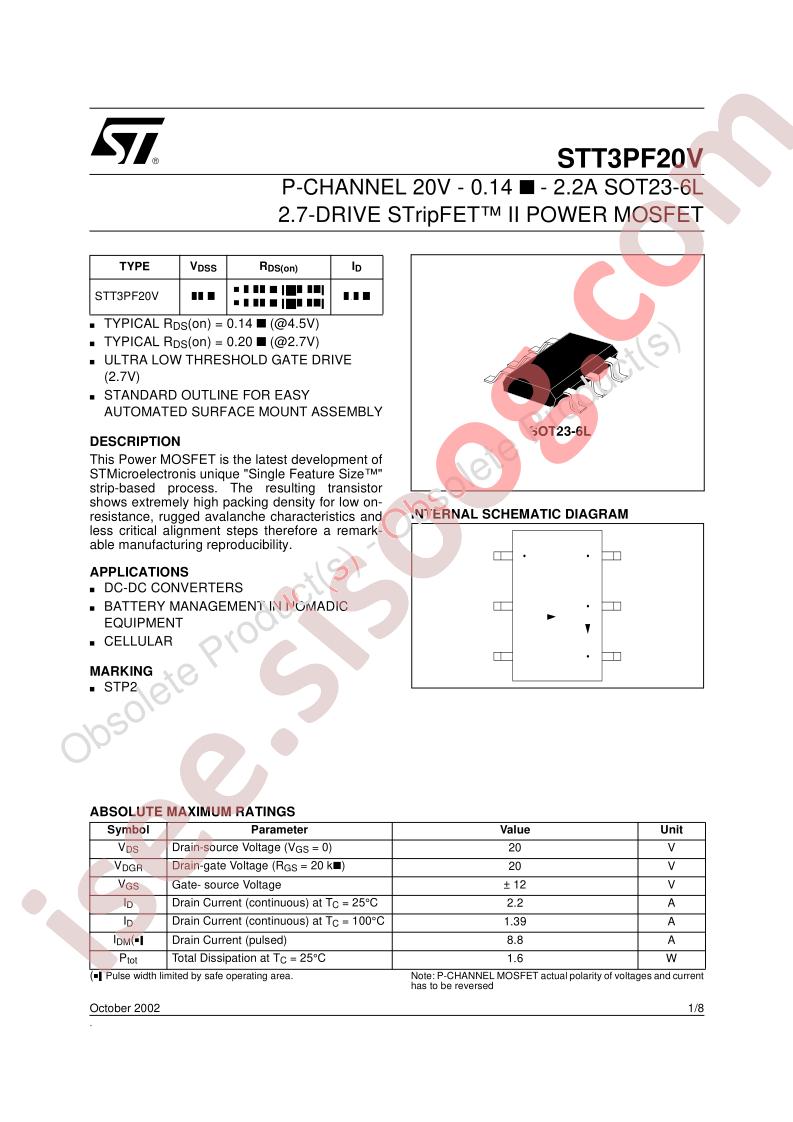

STT3PF20V دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STT3PF20V
|
|
حجم فایل
|
344.23
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
STripFET™ II
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
FET Type:
P-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
20V
-
Current - Continuous Drain (Id) @ 25°C:
2.2A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
2.7V, 4.5V
-
Rds On (Max) @ Id, Vgs:
200mOhm @ 1A, 4.5V
-
Vgs(th) (Max) @ Id:
600mV @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
4.7nC @ 4.5V
-
Vgs (Max):
±12V
-
Input Capacitance (Ciss) (Max) @ Vds:
315pF @ 15V
-
FET Feature:
-
-
Power Dissipation (Max):
1.6W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SOT-23-6
-
Package / Case:
SOT-23-6
-
Base Part Number:
STT3P
-
detail:
P-Channel 20V 2.2A (Tc) 1.6W (Tc) Surface Mount SOT-23-6
