دیتاشیت STW14NK60Z
مشخصات دیتاشیت
| نام دیتاشیت | STx14NK60Z(FP,-1) |
|---|---|
| حجم فایل | 816.063 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 19 |
دانلود دیتاشیت STx14NK60Z(FP,-1) |

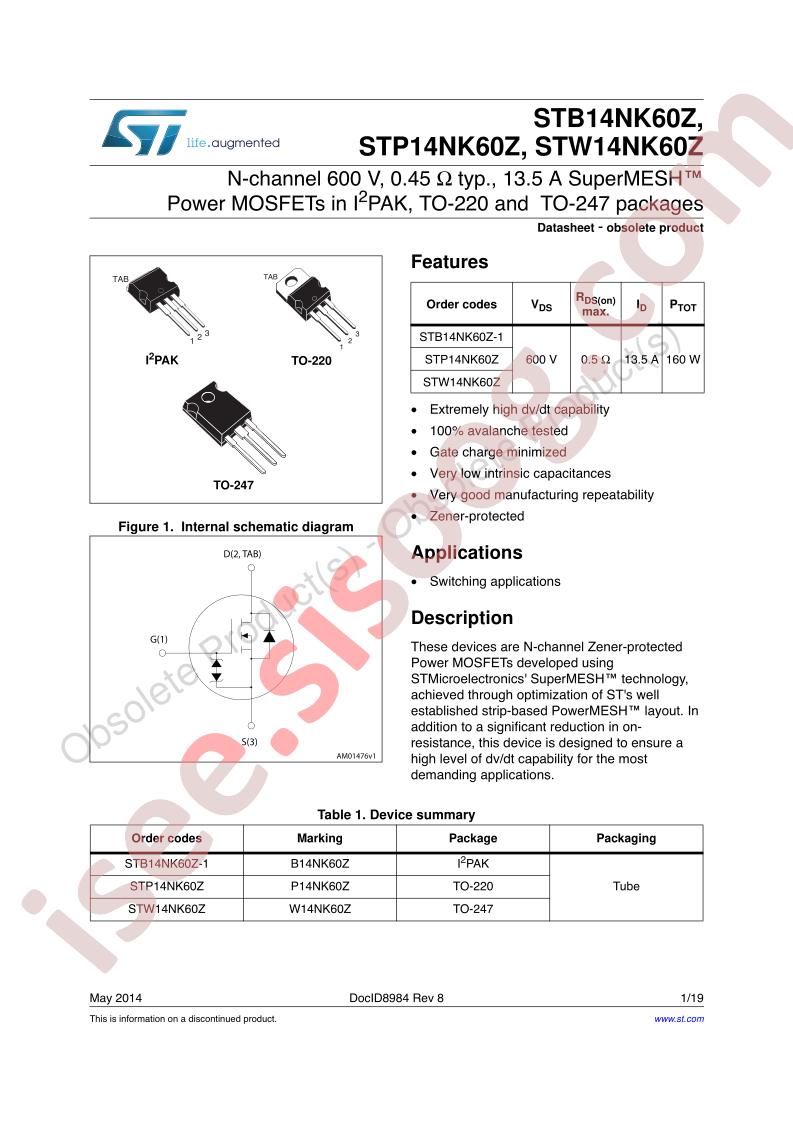

STx14NK60Z(FP,-1) Datasheet |
|---|
مشخصات
- Manufacturer: STMicroelectronics
- Series: SuperMESH™
- Packaging: Tube
- Part Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600V
- Current - Continuous Drain (Id) @ 25°C: 13.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 500mOhm @ 6A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 75nC @ 10V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 2220pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 160W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-3
- Package / Case: TO-247-3
- Base Part Number: STW14N
- detail: N-Channel 600V 13.5A (Tc) 160W (Tc) Through Hole TO-247-3
