CSD25501F3 Datasheet دیتاشیت

CSD25501F3 Datasheet

مشخصات دیتاشیت

نام دیتاشیت CSD25501F3 Datasheet
حجم فایل 1107.784 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

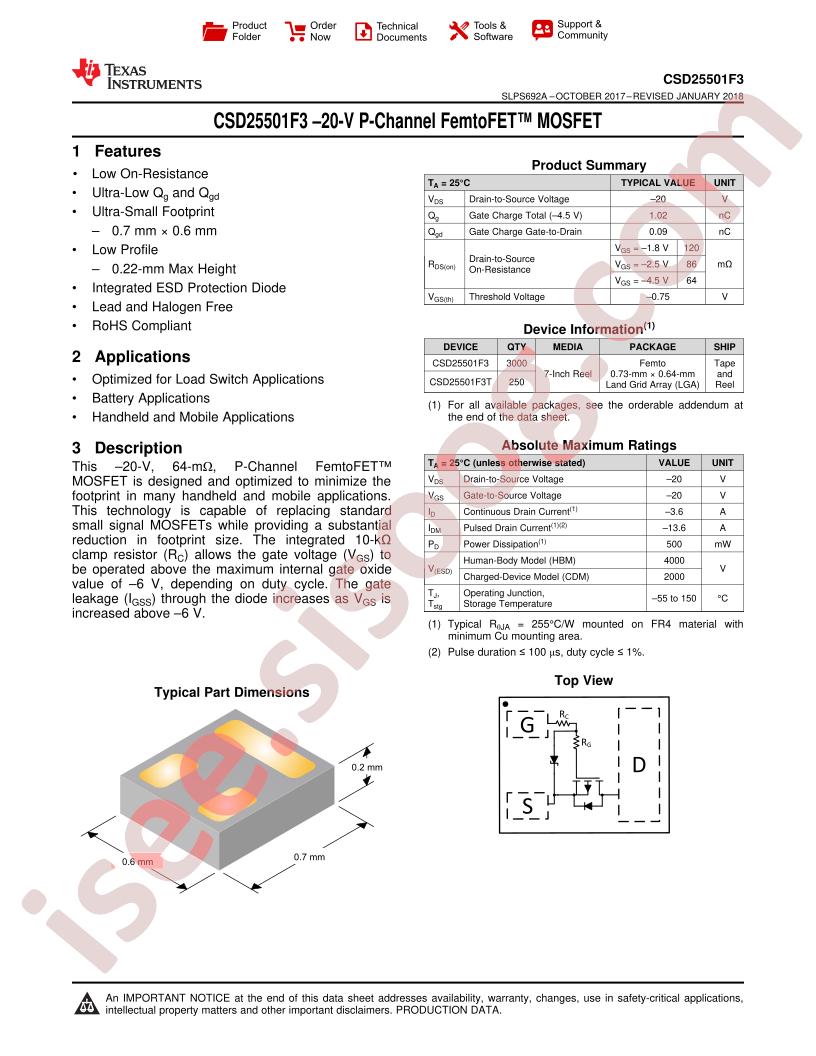

مشاهده دیتاشیت CSD25501F3 Datasheet

دانلود دیتاشیت

سایر مستندات

CSD25501F3T 13 pages

مشخصات فنی

  • RoHS: true
  • Type: P Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: Texas Instruments CSD25501F3T
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 500mW
  • Total Gate Charge (Qg@Vgs): 1.33nC@4.5V
  • Input Capacitance (Ciss@Vds): 385pF@10V
  • Continuous Drain Current (Id): 3.6A
  • Gate Threshold Voltage (Vgs(th)@Id): 1.05V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 76mΩ@400mA,4.5V
  • Package: PicoStar-3
  • Manufacturer: Texas Instruments
  • FET Type: P-Channel
  • Vgs(th) (Max) @ Id: 1.05V @ 250µA
  • Base Part Number: CSD25501
  • Supplier Device Package: 3-LGA (0.73x0.64)
  • Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
  • Input Capacitance (Ciss) (Max) @ Vds: 385pF @ 10V
  • FET Feature: -
  • Drain to Source Voltage (Vdss): 20V
  • Current - Continuous Drain (Id) @ 25°C: 3.6A (Ta)
  • Mounting Type: Surface Mount
  • Rds On (Max) @ Id, Vgs: 76mOhm @ 400mA, 4.5V
  • Packaging: Cut Tape (CT)
  • Series: FemtoFET™
  • Package / Case: 3-XFLGA
  • Gate Charge (Qg) (Max) @ Vgs: 1.33nC @ 4.5V
  • Vgs (Max): -20V
  • Part Status: Active
  • Power Dissipation (Max): 500mW (Ta)
  • Technology: MOSFET (Metal Oxide)
  • detail: P-Channel 20V 3.6A (Ta) 500mW (Ta) Surface Mount 3-LGA (0.73x0.64)
