ESDS312, ESDS314 Datasheet دیتاشیت

ESDS312, ESDS314 Datasheet

مشخصات دیتاشیت

نام دیتاشیت ESDS312, ESDS314 Datasheet
حجم فایل 1106.891 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

مشاهده دیتاشیت ESDS312, ESDS314 Datasheet

دانلود دیتاشیت

سایر مستندات

ESDS312DBVR 20 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices

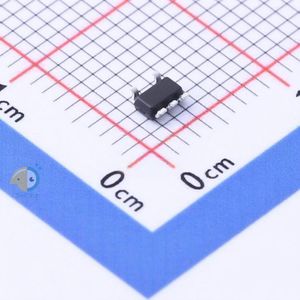

  • Datasheet: Texas Instruments ESDS314DBVR
  • Number of Lines: 4
  • Clamping Voltage@Ipp: 6.5V
  • Operating Temperature: -40°C~+125°C@(Ta)
  • Breakdown Voltage (VBR): 4.5V
  • Peak Pulse Power(Ppp)@8/20us: 170W
  • Junction Capacitance(Cj)@1MHz: 4.5pF@1MHz
  • Peak Pulse Current(Ipp)@8/20us: 25A@(8/20us)
  • Reverse Stand-Off Voltage (Vrwm): 3.6V
  • Package: SOT-23-5
  • Manufacturer: Texas Instruments
  • Type: Zener
  • Supplier Device Package: SOT-23-5
  • Unidirectional Channels: 4
  • Current - Peak Pulse (10/1000µs): 25A (8/20µs)
  • Applications: General Purpose
  • Voltage - Reverse Standoff (Typ): 3.6V (Max)
  • Voltage - Breakdown (Min): 4.5V
  • Voltage - Clamping (Max) @ Ipp: 6.5V (Typ)
  • Capacitance @ Frequency: 4.5pF @ 1MHz
  • Mounting Type: Surface Mount
  • Power Line Protection: No
  • Base Part Number: ESDS3
  • Packaging: Cut Tape (CT)
  • Series: -
  • Power - Peak Pulse: 170W
  • Package / Case: SC-74A, SOT-753
  • Part Status: Active
  • detail: 6.5V (Typ) Clamp 25A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-5
