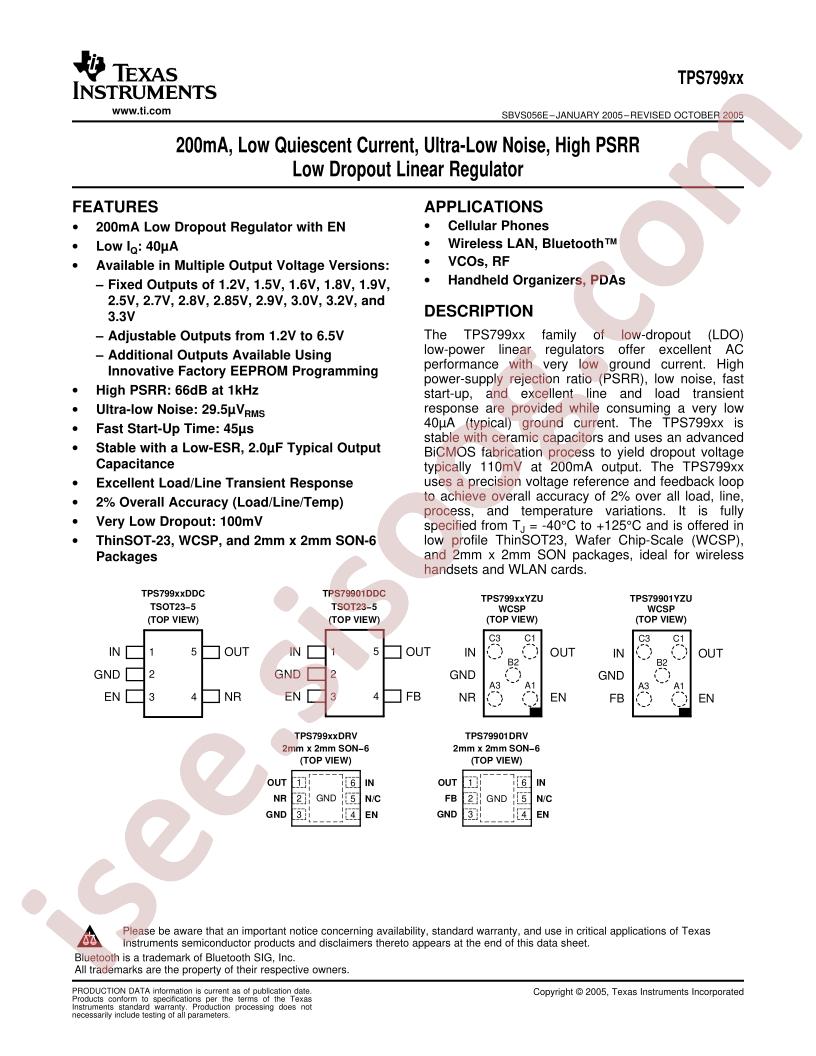

TPS79930YZUT دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TPS79930YZUT |
|---|---|
| حجم فایل | 604.731 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 21 |
دانلود دیتاشیت TPS79930YZUT |
دانلود دیتاشیت |
|---|
سایر مستندات
Connected Sensors Building Automation Systems Guide 13 pages
TPS799xx Datasheet 44 pages
TPS79901DDCR 41 pages
TPS79930YZUT 30 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments TPS79930YZUT
- Output Type: Fixed
- Output Current: 200mA
- Output Voltage: 3V
- Dropout Voltage: 175mV@(200mA)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 6.5V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 60uA
- Power Supply Rejection Ratio (PSRR): 70dB@(100Hz),38dB@(100kHz)
- Package: BGA-5
- Manufacturer: Texas Instruments
- Base Part Number: TPS799
- Supplier Device Package: 5-DSBGA (1x1.37)
- Voltage - Output (Max): -
- Output Configuration: Positive
- Current - Quiescent (Iq): 60µA
- PSRR: 70dB ~ 38dB (100Hz ~ 100kHz)
- Voltage Dropout (Max): 0.18V @ 200mA
- Number of Regulators: 1
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Voltage - Output (Min/Fixed): 3V
- Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
- Series: -
- Voltage - Input (Max): 6.5V
- Current - Output: 200mA
- Part Status: Active
- Package / Case: 5-UFBGA, DSBGA
- Control Features: Enable
- detail: Linear Voltage Regulator IC 1 Output 200mA 5-DSBGA (1x1.37)
