دیتاشیت EVAL6599-200W
مشخصات دیتاشیت
| نام دیتاشیت | EVAL6599-200W (AN2393) |
|---|---|
| حجم فایل | 616.747 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 35 |

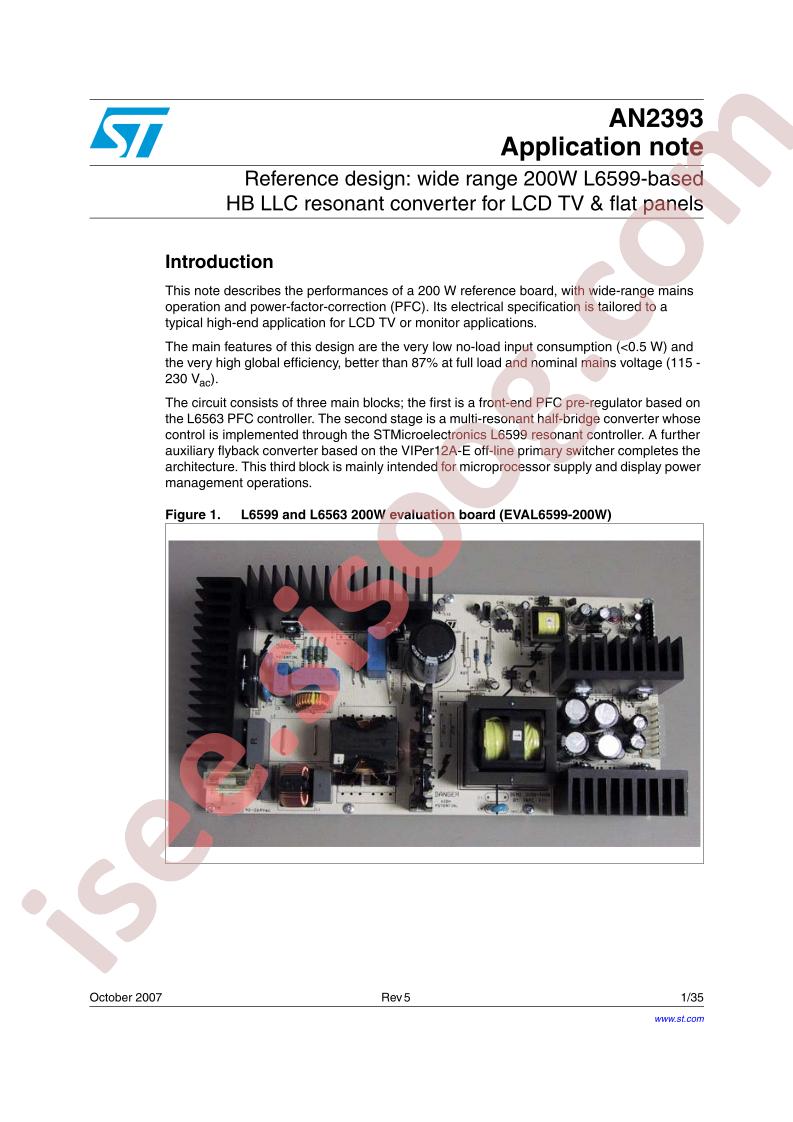

دانلود دیتاشیت EVAL6599-200W (AN2393) |
EVAL6599-200W (AN2393) Datasheet |
|---|
مشخصات
- Manufacturer: STMicroelectronics
- Series: -
- Part Status: Obsolete
- Main Purpose: AC/DC, Primary Side and PFC
- Outputs and Type: 4, Isolated
- Power - Output: 200W
- Voltage - Output: 3.3V, 5V, 12V, 24V
- Current - Output: 6A, 5A, 1A, 700mA
- Voltage - Input: 90 ~ 264 VAC
- Regulator Topology: Resonant
- Frequency - Switching: 95kHz
- Board Type: Fully Populated
- Supplied Contents: Board(s)
- Utilized IC / Part: L6563, L6599
- detail: L6563, L6599 - AC/DC, Primary Side and PFC 4, Isolated Outputs Evaluation Board
