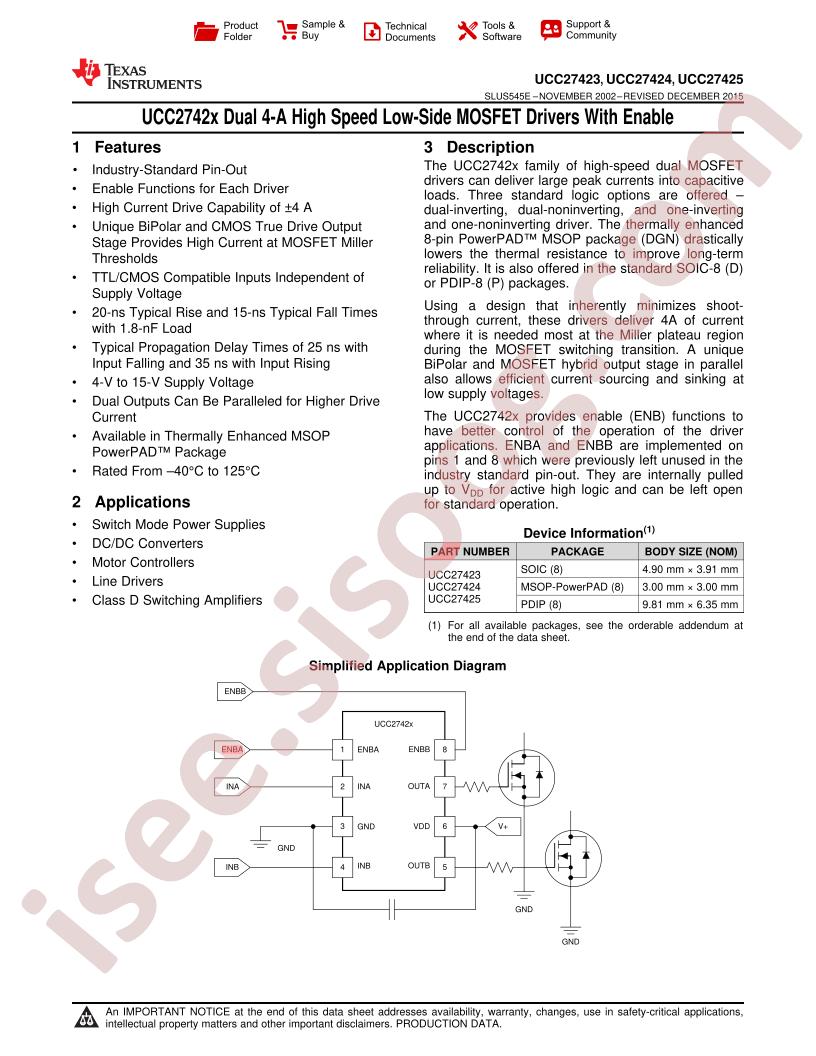

UCC2742x Series Datasheet

UCC2742x Series

Datasheet specifications

Datasheet's name UCC2742x Series
File size 2209.29 KB
File type pdf
Number of pages 39

Download Datasheet UCC2742x Series

Download Datasheet

Other documentations

UCC27424DGN 40 pages

Technical specifications

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments UCC27425P
  • Fall Time: 15ns
  • Load Type: MOSFET
  • Rise Time: 20ns
  • Supply Voltage: 4V~15V
  • Number of Drivers: 2
  • Driven Configuration: Low Side
  • Operating Temperature: -40°C~+125°C@(Ta)
  • Peak Output Current(sink): 4A
  • Peak Output Current(source): 4A
  • Package: PDIP-8
  • Manufacturer: Texas Instruments
  • Channel Type: Independent
  • Gate Type: N-Channel, P-Channel MOSFET
  • Rise / Fall Time (Typ): 20ns, 15ns
  • Supplier Device Package: 8-PDIP
  • Mounting Type: Through Hole
  • Current - Peak Output (Source, Sink): 4A, 4A
  • Input Type: Inverting, Non-Inverting
  • Base Part Number: UCC274
  • Packaging: Tube
  • Voltage - Supply: 4V ~ 15V
  • Series: -
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Part Status: Active
  • Logic Voltage - VIL, VIH: 1V, 2V
  • detail: Low-Side Gate Driver IC Inverting, Non-Inverting 8-PDIP
