- دیتاشیت TPS82675SIPT
دیتاشیت TPS82675SIPT
مشخصات دیتاشیت
| نام دیتاشیت | TPS82675SIPT |
|---|---|
| حجم فایل | 105.849 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 29 |
TPS82675SIPT |
دانلود دیتاشیت |
|---|
سایر مستندات

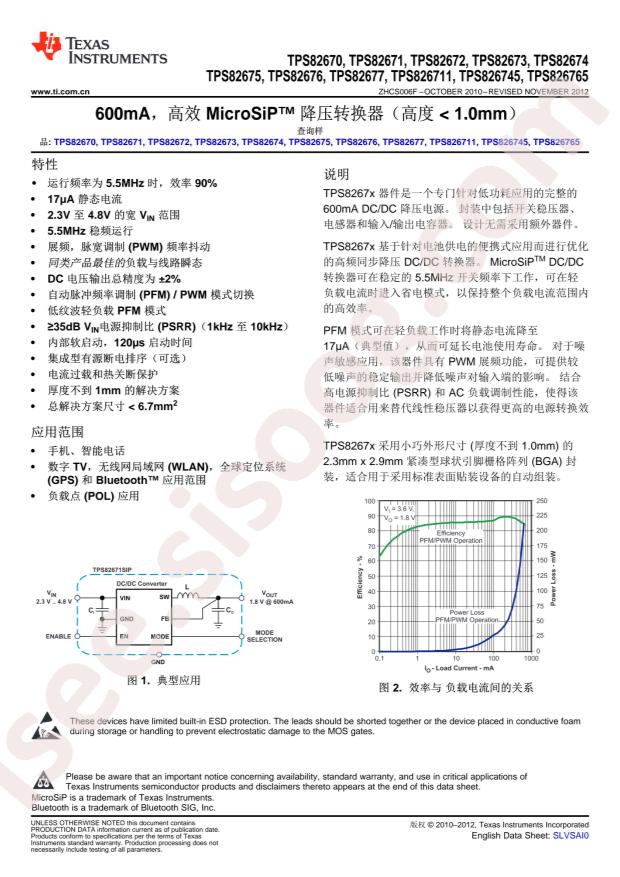

TPS8267x, TPS8267xx Datasheet 31 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Power Modules
- Function: -
- Datasheet: Texas Instruments TPS82675SIPT
- Output Channel: 1
- Output Voltage: 1.2V
- Conversion Type: DC-DC
- Input Voltage(DC): 2.3V~4.8V
- Output Current (Max): 600mA
- Conversion Efficiency: 90%
- Package: USIP-8
- Manufacturer: Texas Instruments
- Type: Non-Isolated PoL Module
- Voltage - Output 2: -
- Voltage - Output 3: -
- Applications: ITE (Commercial)
- Series: MicroSip™
- Packaging: Cut Tape (CT)
- Current - Output (Max): 600mA
- Voltage - Output 1: 1.2V
- Supplier Device Package: 8-uSIP
- Voltage - Input (Min): 2.3V
- Part Status: Active
- Base Part Number: TPS826
- Features: Remote On/Off, OCP, OTP, UVLO
- Efficiency: 90%
- Package / Case: 8-BGA Module
- Mounting Type: Surface Mount
- Voltage - Input (Max): 4.8V
- Number of Outputs: 1
- Size / Dimension: 0.12" L x 0.09" W x 0.04" H (3.0mm x 2.4mm x 1.0mm)
- Control Features: Enable, Active High
- Operating Temperature: -40°C ~ 85°C
- detail: Non-Isolated PoL Module DC DC Converter 1 Output 1.2V 600mA 2.3V - 4.8V Input
