دیتاشیت VND7N04-1-E

VN(D,K)7N04(-1,FM)

مشخصات دیتاشیت

نام دیتاشیت VN(D,K)7N04(-1,FM)
حجم فایل 610.87 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

دانلود دیتاشیت VN(D,K)7N04(-1,FM)

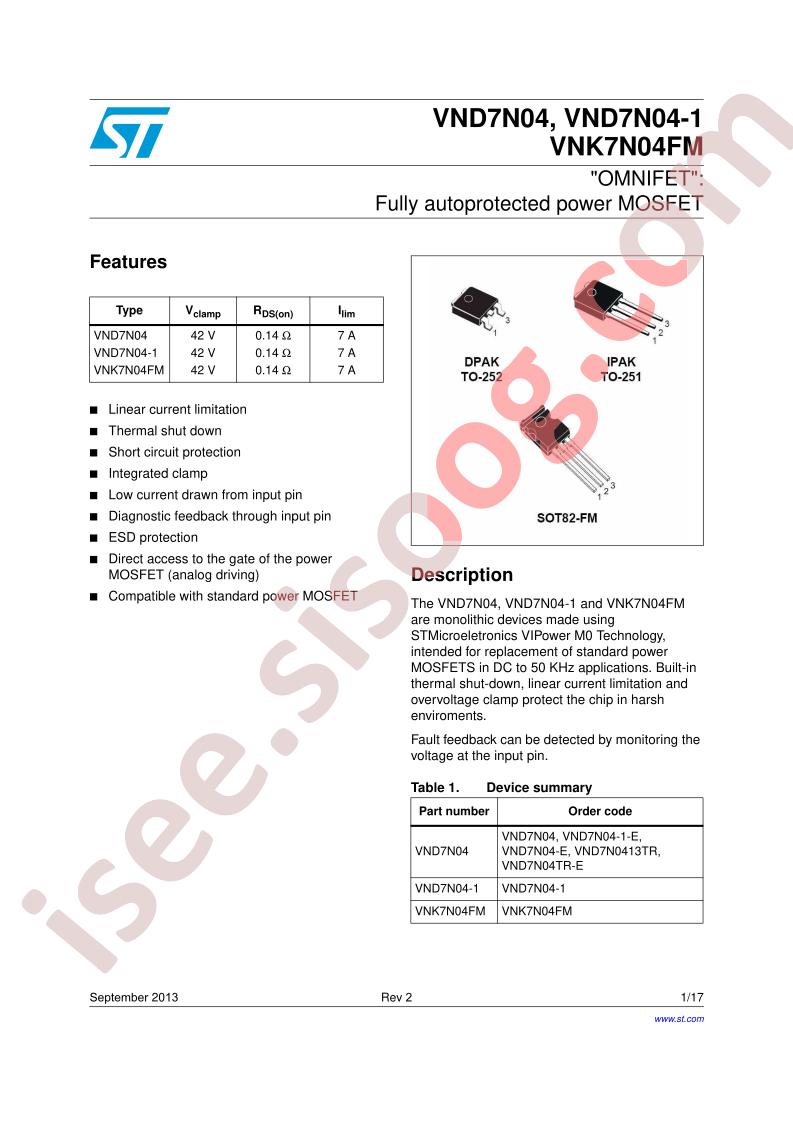

VN(D,K)7N04(-1,FM) Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: OMNIFET II™, VIPower™
  • Packaging: Tube
  • Part Status: Obsolete
  • Switch Type: General Purpose
  • Number of Outputs: 1
  • Ratio - Input:Output: 1:1
  • Output Configuration: Low Side
  • Output Type: N-Channel
  • Interface: On/Off
  • Voltage - Load: 31V (Max)
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 4A
  • Rds On (Typ): 140mOhm (Max)
  • Input Type: Non-Inverting
  • Features: -
  • Fault Protection: Current Limiting (Fixed), Over Temperature, Over Voltage
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: I-PAK
  • Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
  • Base Part Number: VND7N
  • detail: Power Switch/Driver 1:1 N-Channel 4A I-PAK
