SN54,74(LS,S)04 Datasheet دیتاشیت

SN54,74(LS,S)04 Datasheet

مشخصات دیتاشیت

نام دیتاشیت SN54,74(LS,S)04 Datasheet
حجم فایل 1288.952 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

دانلود دیتاشیت SN54,74(LS,S)04 Datasheet

دانلود دیتاشیت

سایر مستندات

SN74LS04D 26 pages

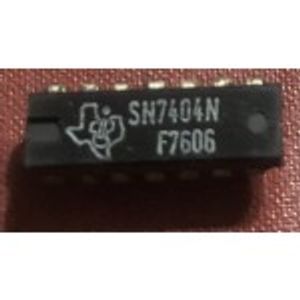

مشخصات فنی

  • RoHS: true
  • Series: 74S
  • Category: Logic ICs/Inverters
  • Datasheet: Texas Instruments SN74S04N
  • Sink Current: 20mA
  • Source Current: 1mA
  • Number of Inputs: 1
  • Number of Circuits: 6
  • Low level range (VIL): 0.8V
  • Max Propagation Delay: 5ns@5V,50pF
  • Operating Temperature: 0°C~+70°C
  • High level range (VIH): 2V
  • Supply Voltage(Single): 4.75V~5.25V
  • Package: PDIP-14
  • Manufacturer: Texas Instruments
  • Logic Level - High: 2V
  • Base Part Number: SN74S0
  • Supplier Device Package: 14-PDIP
  • Logic Level - Low: 0.8V
  • Package / Case: 14-DIP (0.300", 7.62mm)
  • Current - Output High, Low: 1mA, 20mA
  • Features: -
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Voltage - Supply: 4.75V ~ 5.25V
  • Max Propagation Delay @ V, Max CL: 5ns @ 5V, 50pF
  • Part Status: Active
  • Logic Type: Inverter
  • detail: Inverter IC 6 Channel 14-PDIP
