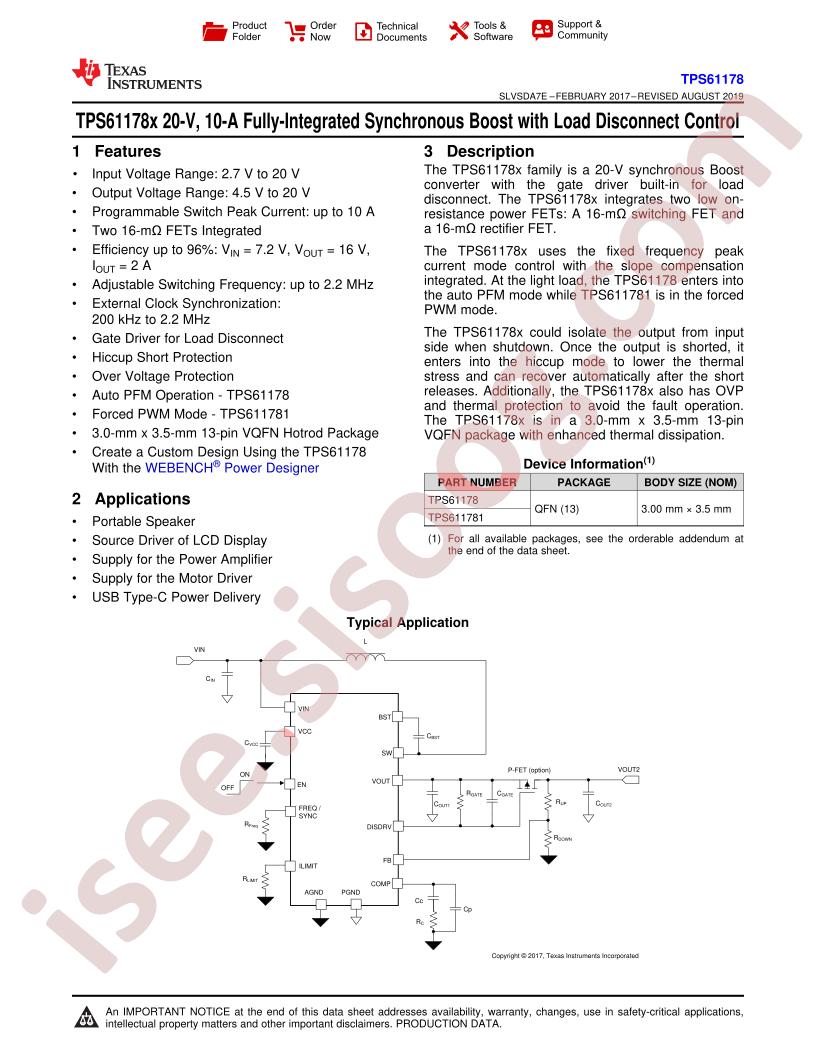

TPS61178, TPS611781 Datasheet Datasheet

TPS61178, TPS611781 Datasheet

Datasheet specifications

Datasheet's name TPS61178, TPS611781 Datasheet
File size 1570.244 KB
File type pdf
Number of pages 40

Download Datasheet TPS61178, TPS611781 Datasheet

Download Datasheet

Other documentations

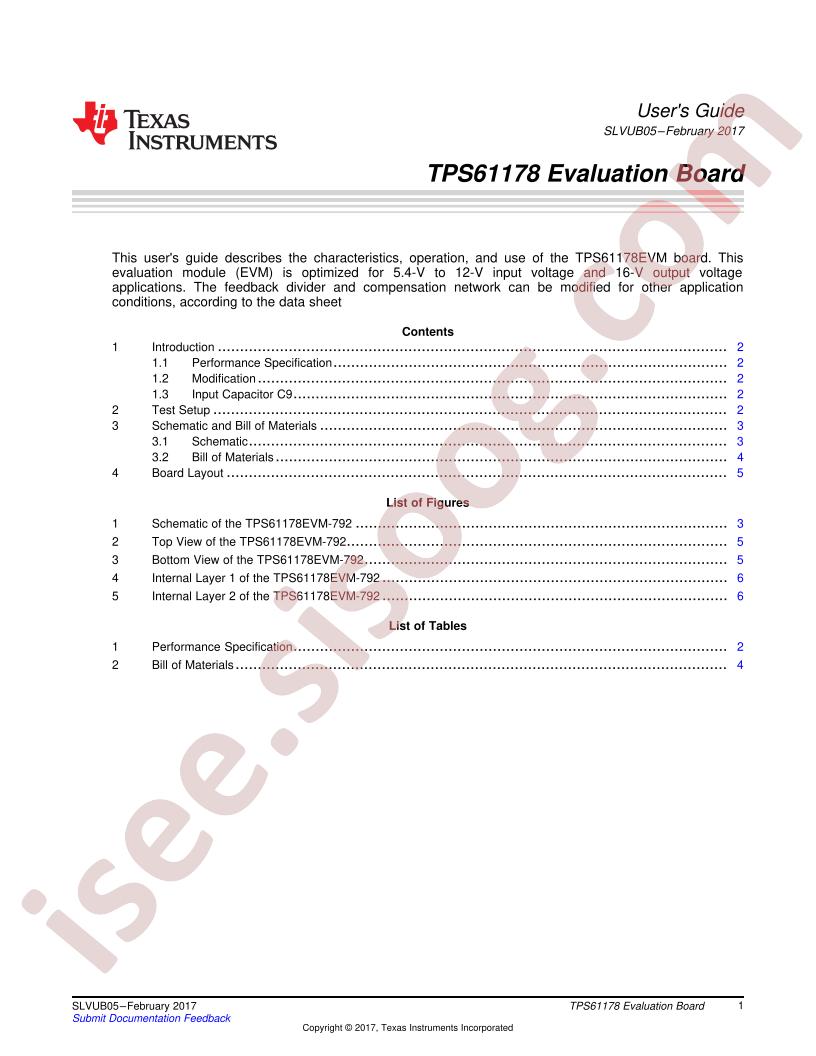

TPS61178EVM User Guide 11 pages

Technical specifications

  • Regulator Topology: Boost
  • Current - Output: 2.2A
  • Main Purpose: DC/DC, Step Up
  • Utilized IC / Part: TPS61178
  • Base Part Number: TPS611
  • Outputs and Type: 1, Non-Isolated
  • Supplied Contents: Board(s)
  • Frequency - Switching: 500kHz
  • Voltage - Output: 16V
  • Series: -
  • Voltage - Input: 5.4V ~ 12V
  • Board Type: Fully Populated
  • Part Status: Active
  • Manufacturer: Texas Instruments
  • detail: TPS61178 - DC/DC, Step Up 1, Non-Isolated Outputs Evaluation Board
