TPS23754(-1)/56 Datasheet
Datasheet specifications
| Datasheet's name | TPS23754(-1)/56 |
|---|---|
| File size | 2239.955 KB |
| File type | |
| Number of pages | 46 |
Download Datasheet TPS23754(-1)/56 |
Download Datasheet |
|---|
Other documentations
TPS23754EVM-420 User Guide 11 pages
Technical specifications
- Regulator Topology: Buck
- Board Type: Fully Populated
- Main Purpose: Special Purpose DC/DC, Power Over Ethernet
- Utilized IC / Part: TPS23754
- Base Part Number: TPS237
- Outputs and Type: 1, Isolated
- Supplied Contents: Board(s)
- Frequency - Switching: 250kHz
- Voltage - Output: 5V
- Series: -
- Power - Output: 25W
- Current - Output: 5A
- Part Status: Active
- Voltage - Input: 30V ~ 57V
- Manufacturer: Texas Instruments

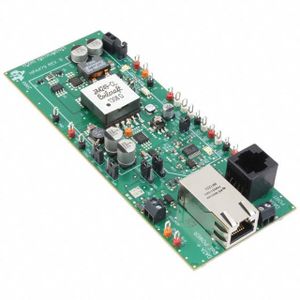

- detail: TPS23754 - Special Purpose DC/DC, Power Over Ethernet 1, Isolated Outputs Evaluation Board
