دیتاشیت MSP430FR2311IRGYT
مشخصات دیتاشیت
| نام دیتاشیت | MSP430FR2311IRGYT |
|---|---|
| حجم فایل | 90.037 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 100 |
MSP430FR2311IRGYT |
دانلود دیتاشیت |
|---|
سایر مستندات
MSP430FR4xx, MSP430FR2xx Family User Guide 676 pages
MSP430FR2311, 2310 Datasheet 97 pages
MSP430FR2311 Errata 13 pages
مشخصات فنی
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: MSP430
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 1KB
- Watchdog: Yes
- ADC (Bit): -
- DAC (Bit): -
- Datasheet: Texas Instruments MSP430FR2311IRGYT
- PWM (Bit): -
- 8Bit Timer: -
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: 16MHz
- GPIO Ports Number: 12
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: WDT
- Program Memory Type: FRAM
- Direct Memory Access: -
- Program Storage Size: 3.75KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.8V~3.6V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -

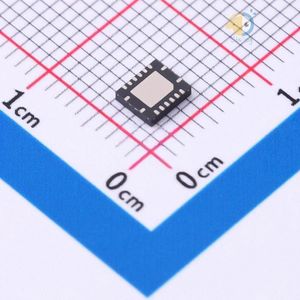

- Package: QFN-16-EP(3.5x4)
- Manufacturer: Texas Instruments
- Series: MSP430™ FRAM
- EEPROM Size: -
- Oscillator Type: Internal
- Mounting Type: Surface Mount
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Data Converters: A/D 8x10b
- Packaging: Cut Tape (CT)
- Core Processor: MSP430
- Number of I/O: 12
- Program Memory Size: 3.75KB (3.75K x 8)
- Core Size: 16-Bit
- Connectivity: I²C, IrDA, SCI, SPI, UART/USART
- Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
- Supplier Device Package: 16-VQFN (4x3.5)
- Base Part Number: 430FR2311
- Package / Case: 16-VFQFN Exposed Pad
- Speed: 16MHz
- Part Status: Active
- Operating Temperature: -40°C ~ 85°C (TA)
- detail: MSP430 MSP430™ FRAM Microcontroller IC 16-Bit 16MHz 3.75KB (3.75K x 8) FRAM 16-VQFN (4x3.5)
