STG3684ADTR دیتاشیت
مشخصات دیتاشیت
|

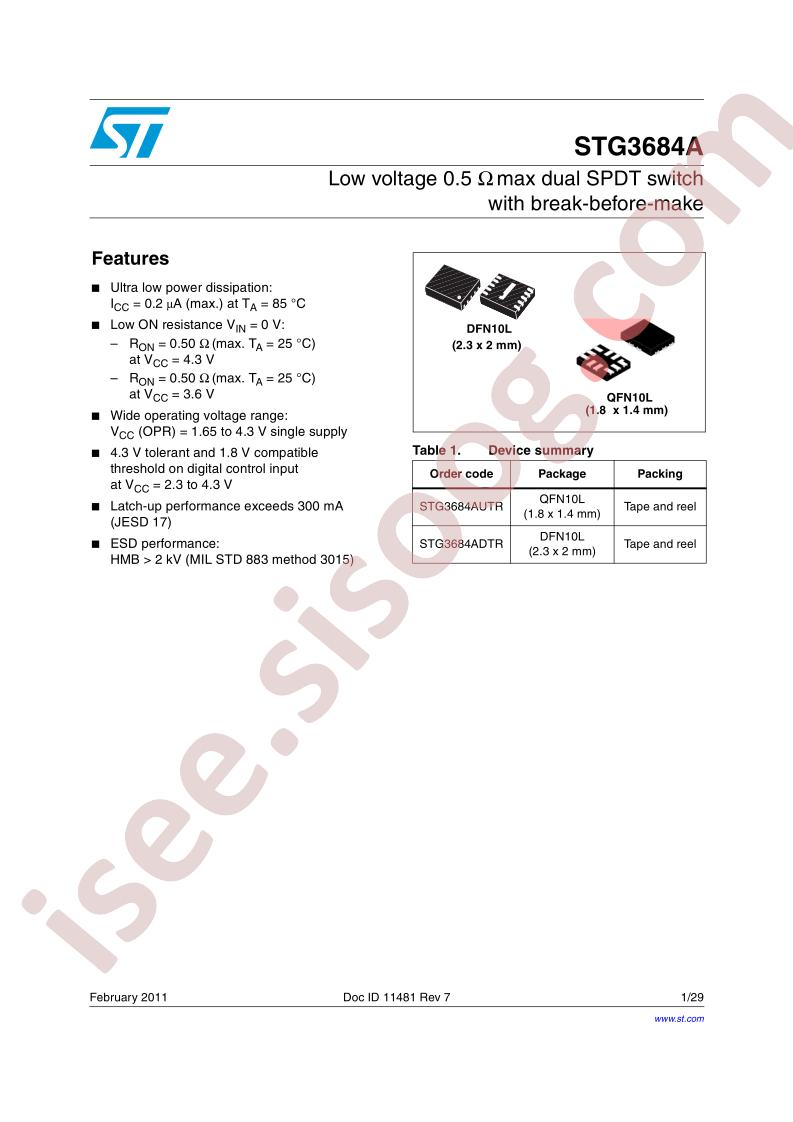

نام دیتاشیت
|
STG3684A
|
|
حجم فایل
|
487.162
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
29
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
Switch Circuit:
SPDT
-
Multiplexer/Demultiplexer Circuit:
2:1
-
Number of Circuits:
2
-
On-State Resistance (Max):
500mOhm
-
Channel-to-Channel Matching (ΔRon):
100mOhm
-
Voltage - Supply, Single (V+):
1.65V ~ 4.3V
-
Voltage - Supply, Dual (V±):
-
-
Switch Time (Ton, Toff) (Max):
55ns, 30ns
-
-3db Bandwidth:
55MHz
-
Charge Injection:
49pC
-
Channel Capacitance (CS(off), CD(off)):
5pF
-
Current - Leakage (IS(off)) (Max):
20nA
-
Crosstalk:
-72dB @ 100kHz
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Mounting Type:
Surface Mount
-
Package / Case:
10-UFDFN Exposed Pad
-
Supplier Device Package:
10-DFN (2.3x2.0)
-
Base Part Number:
STG3684
-
detail:
2 Circuit IC Switch 2:1 500mOhm 10-DFN (2.3x2.0)
