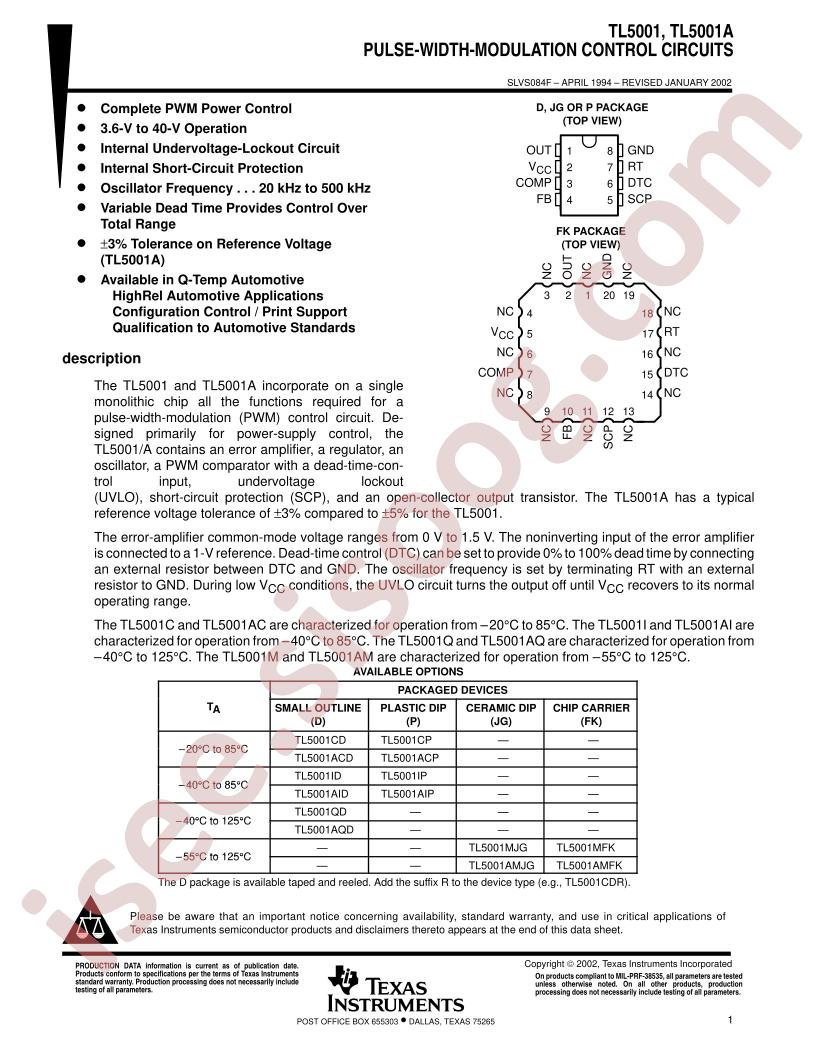

دیتاشیت TL5001AIP
مشخصات دیتاشیت
| نام دیتاشیت | TL5001AIP |
|---|---|
| حجم فایل | 721.64 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 32 |
TL5001AIP |
دانلود دیتاشیت |
|---|
سایر مستندات
TL5001, TL5001A 33 pages
TL5001AIDR 33 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: boost converterType;Step-down type;Buck-boost type
- Topology: Step-down;Boost;Flyback
- Datasheet: Texas Instruments TL5001AIP
- Input Voltage: 3.6V~40V
- Duty Cycle (Max): 100%
- Number of Outputs: 1
- Switching Frequency: 500kHz
- Operating Temperature: -40°C~+85°C@(TA)
- Synchronous Rectification: NO
- Package: PDIP-8
- Manufacturer: Texas Instruments
- Output Phases: 1
- Series: -
- Output Configuration: Positive
- Output Type: Transistor Driver
- Clock Sync: No
- Packaging: Tube
- Synchronous Rectifier: No
- Voltage - Supply (Vcc/Vdd): 3.6V ~ 40V
- Supplier Device Package: 8-PDIP
- Serial Interfaces: -
- Frequency - Switching: 20kHz ~ 500kHz
- Mounting Type: Through Hole
- Base Part Number: TL500
- Part Status: Active
- Control Features: Dead Time Control, Frequency Control
- Package / Case: 8-DIP (0.300", 7.62mm)
- detail: Buck, Boost, Flyback Regulator Positive Output Step-Up, Step-Down, Step-Up/Step-Down DC-DC Controller IC 8-PDIP
