UC3717ANG4 دیتاشیت

مشخصات دیتاشیت

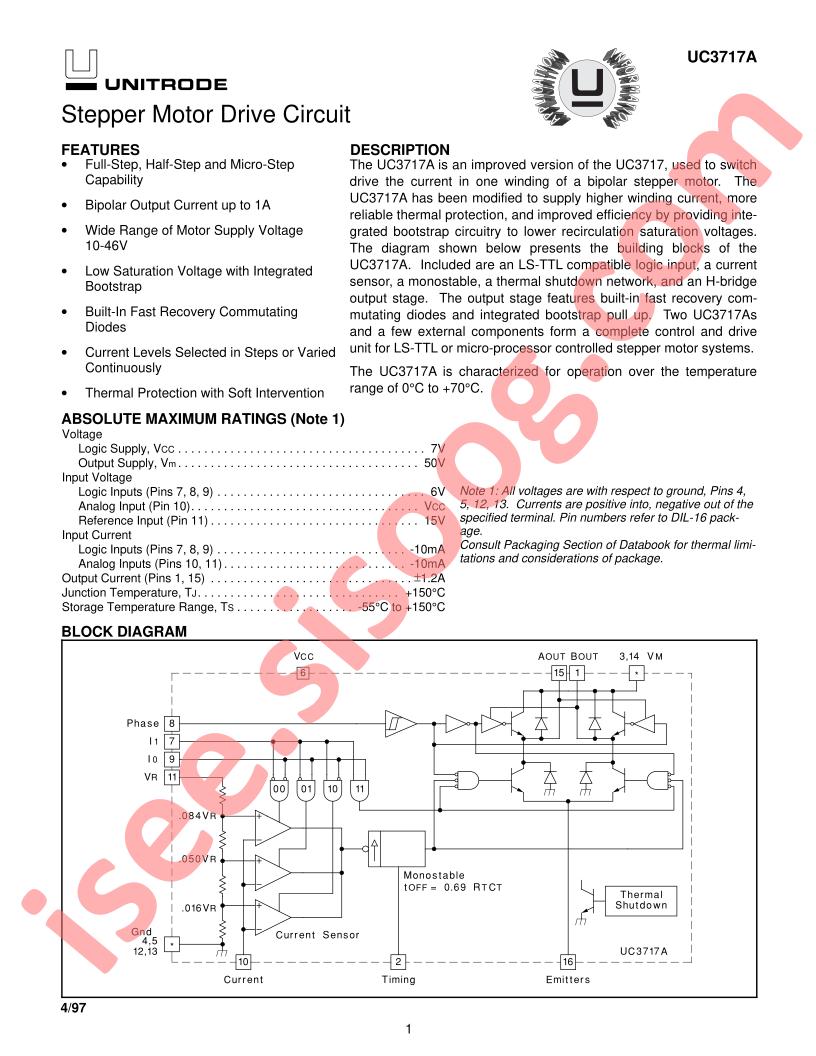

مشاهده دیتاشیت UC3717ANG4	دانلود دیتاشیت

UC3717A 12 pages

Current - Output / Channel: 1A
Operating Temperature: 0°C ~ 150°C (TJ)
Current - Peak Output: -
Supplier Device Package: 16-PDIP
Applications: General Purpose, Stepper Motors
Output Configuration: Half Bridge (2)
Load Type: Inductive
Features: Bootstrap Circuit
Fault Protection: Over Temperature
Voltage - Load: 10V ~ 46V
Mounting Type: Through Hole
Voltage - Supply: 4.75V ~ 5.25V
Interface: Logic
Packaging: Tube
Rds On (Typ): -
Series: -
Package / Case: 16-DIP (0.300", 7.62mm)
Base Part Number: UC371
Part Status: Active
Technology: Bipolar
Manufacturer: Texas Instruments
detail: Half Bridge (2) Driver General Purpose, Stepper Motors Bipolar 16-PDIP
