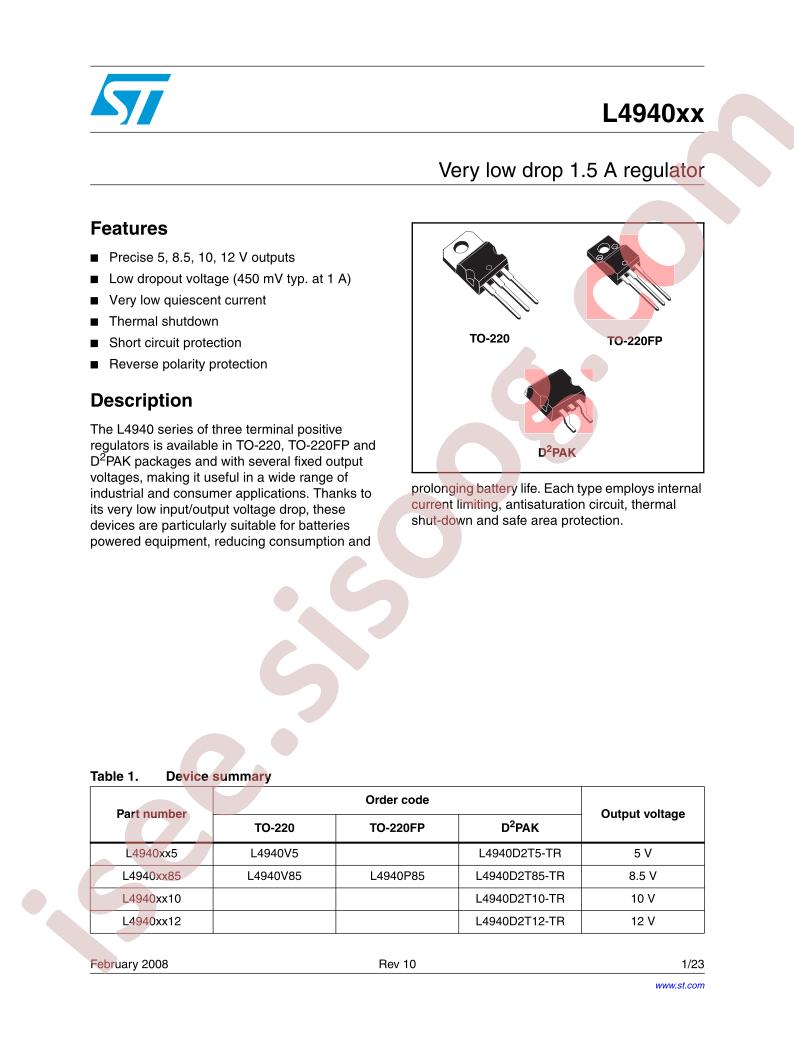

دیتاشیت L4940D2T10-TR
مشخصات دیتاشیت
| نام دیتاشیت |
L4940D2T10-TR
|
| حجم فایل |
1599.469
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
23
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
Output Configuration:
Positive
-
Output Type:
Fixed
-
Number of Regulators:
1
-
Voltage - Input (Max):
17V
-
Voltage - Output (Min/Fixed):
10V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.9V @ 1.5A
-
Current - Output:
1.5A
-
Current - Quiescent (Iq):
8mA
-
Current - Supply (Max):
50mA
-
PSRR:
62dB (120Hz)
-
Control Features:
-
-
Protection Features:
Over Temperature, Reverse Polarity, Short Circuit
-
Operating Temperature:
-40°C ~ 150°C
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Supplier Device Package:
D2PAK
-
Base Part Number:
L4940
-
detail:
Linear Voltage Regulator IC 1 Output 1.5A D2PAK
