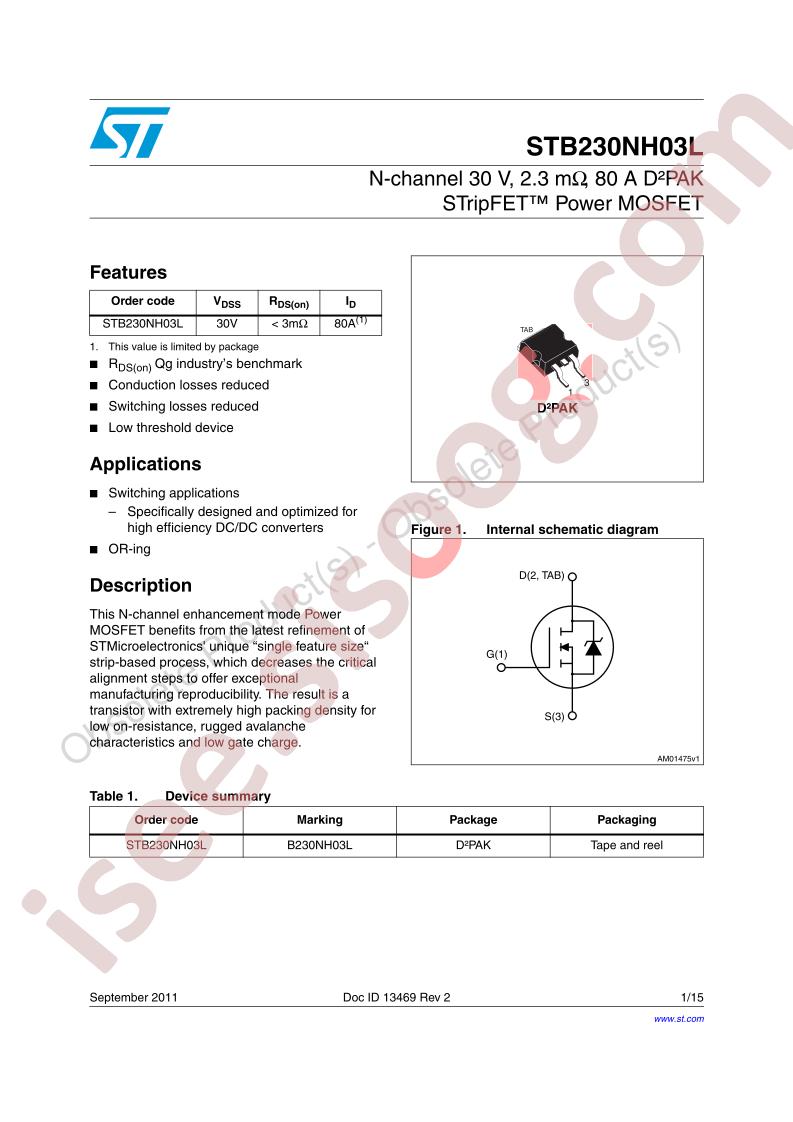

STB230NH03L دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STB230NH03L
|
|
حجم فایل
|
825.98
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
15
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
STripFET™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
80A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
3mOhm @ 40A, 10V
-
Vgs(th) (Max) @ Id:
2.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
72nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
4700pF @ 10V
-
FET Feature:
-
-
Power Dissipation (Max):
300W (Tc)
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
D2PAK
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Base Part Number:
STB230N
-
detail:
N-Channel 30V 80A (Tc) 300W (Tc) Surface Mount D2PAK
