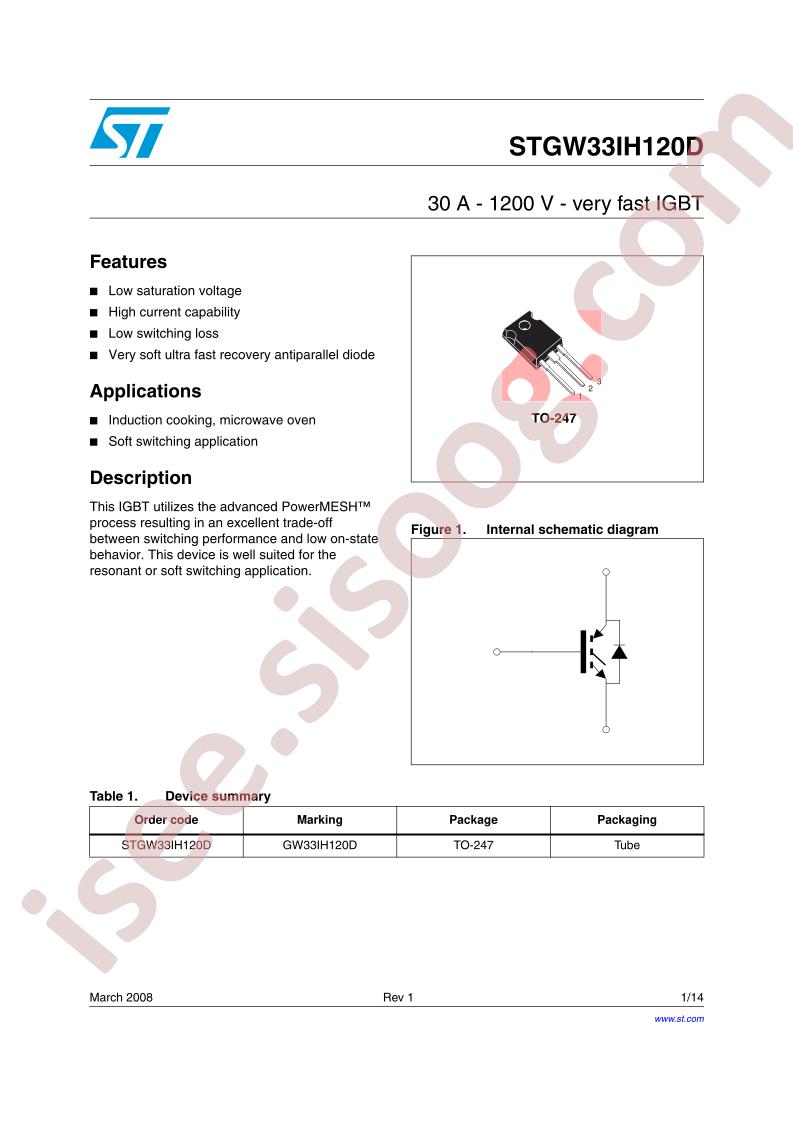

STGW33IH120D دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STGW33IH120D
|
|
حجم فایل
|
541.324
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
PowerMESH™
-
Packaging:
Tube
-
Part Status:
Obsolete
-
IGBT Type:
-
-
Voltage - Collector Emitter Breakdown (Max):
1200V
-
Current - Collector (Ic) (Max):
60A
-
Current - Collector Pulsed (Icm):
45A
-
Vce(on) (Max) @ Vge, Ic:
2.8V @ 15V, 20A
-
Power - Max:
220W
-
Switching Energy:
1.5mJ (on), 3.4mJ (off)
-
Input Type:
Standard
-
Gate Charge:
127nC
-
Td (on/off) @ 25°C:
46ns/284ns
-
Test Condition:
960V, 20A, 10Ohm, 15V
-
Reverse Recovery Time (trr):
85ns
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247 Long Leads
-
Base Part Number:
STGW33
-
detail:
IGBT 1200V 60A 220W Through Hole TO-247 Long Leads
