STW27NM60ND دیتاشیت

STW27NM60ND

مشخصات دیتاشیت

نام دیتاشیت STW27NM60ND
حجم فایل 67.515 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

مشاهده دیتاشیت STW27NM60ND

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs

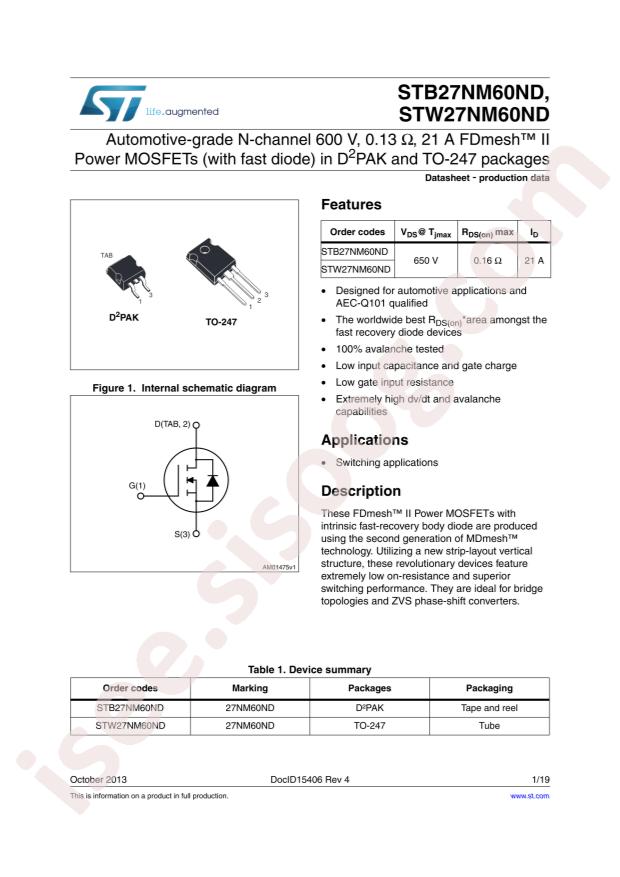

  • Datasheet: STMicroelectronics STW27NM60ND
  • Operating Temperature: +150°C@(Tj)
  • Power Dissipation (Pd): 160W
  • Total Gate Charge (Qg@Vgs): 80nC@10V
  • Drain Source Voltage (Vdss): 600V
  • Input Capacitance (Ciss@Vds): 2.4nF@50V
  • Continuous Drain Current (Id): 21A
  • Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): 15pF@50V
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 130mΩ@10V,10.5A
  • Package: TO-247
  • Manufacturer: STMicroelectronics
  • Series: Automotive, AEC-Q101, FDmesh™ II
  • Packaging: Tube
  • Part Status: Obsolete
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 21A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 160mOhm @ 10.5A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 250µA
  • Vgs (Max): ±25V
  • FET Feature: -
  • Power Dissipation (Max): 160W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-247-3
  • Package / Case: TO-247-3
  • Base Part Number: STW27N
  • detail: N-Channel 600V 21A (Tc) 160W (Tc) Through Hole TO-247-3
