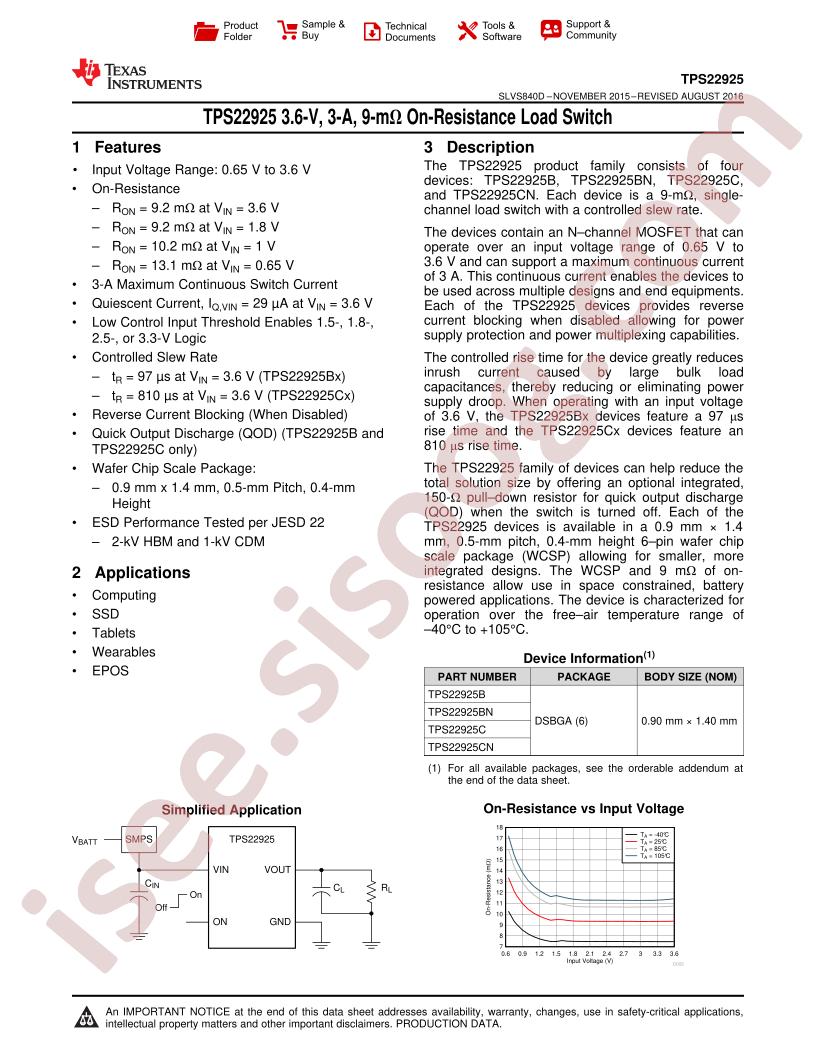

TPS22925 Datasheet دیتاشیت

TPS22925 Datasheet

مشخصات دیتاشیت

نام دیتاشیت TPS22925 Datasheet
حجم فایل 1323.841 کیلوبایت
نوع فایل pdf
تعداد صفحات 29

دانلود دیتاشیت TPS22925 Datasheet

دانلود دیتاشیت

سایر مستندات

TPS22925CNYPHT 28 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: Texas Instruments TPS22925BYPHT
  • Input Voltage: 0.65V~3.6V
  • Output Current: 3A
  • Number of Outputs: 1
  • Resistor On-State: 9.2mΩ
  • Operating Temperature -: -40°C~+105°C
  • Package: BGA-6
  • Manufacturer: Texas Instruments
  • Series: -
  • Output Configuration: High Side
  • Output Type: N-Channel
  • Fault Protection: Reverse Current
  • Packaging: Cut Tape (CT)
  • Ratio - Input:Output: 1:1
  • Input Type: Non-Inverting
  • Current - Output (Max): 3A
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Switch Type: General Purpose
  • Supplier Device Package: 6-DSBGA
  • Base Part Number: TPS229
  • Features: Load Discharge, Slew Rate Controlled
  • Voltage - Load: 0.65V ~ 3.6V
  • Interface: On/Off
  • Rds On (Typ): 9.2mOhm
  • Mounting Type: Surface Mount
  • Package / Case: 6-XFBGA, DSBGA
  • Part Status: Active
  • Operating Temperature: -40°C ~ 105°C (TA)
  • detail: Power Switch/Driver 1:1 N-Channel 3A 6-DSBGA
