STEVAL-ISA054V1 دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت STEVAL-ISA054V1 Datasheet	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Manufacturer: STMicroelectronics
Series: -
Part Status: Obsolete
Main Purpose: AC/DC, Primary Side
Outputs and Type: 2, Isolated
Power - Output: 100W
Voltage - Output: 24V, 3.3V or 5V
Current - Output: 4A, 1A
Voltage - Input: 180 ~ 265 VAC, 320 ~ 480 VAC
Regulator Topology: Flyback
Frequency - Switching: 250kHz
Board Type: Fully Populated
Supplied Contents: Board(s)
Utilized IC / Part: L5970, STW9N150, UC3844B

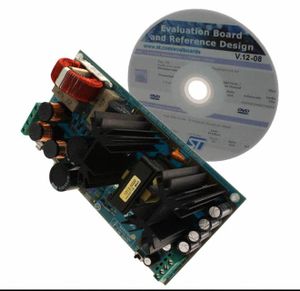

detail: L5970, STW9N150, UC3844B - AC/DC, Primary Side 2, Isolated Outputs Evaluation Board
