دیتاشیت NS486SXF-25/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | NS486SXF-25/NOPB |
|---|---|
| حجم فایل | 488.627 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 46 |
دانلود دیتاشیت NS486SXF-25/NOPB |

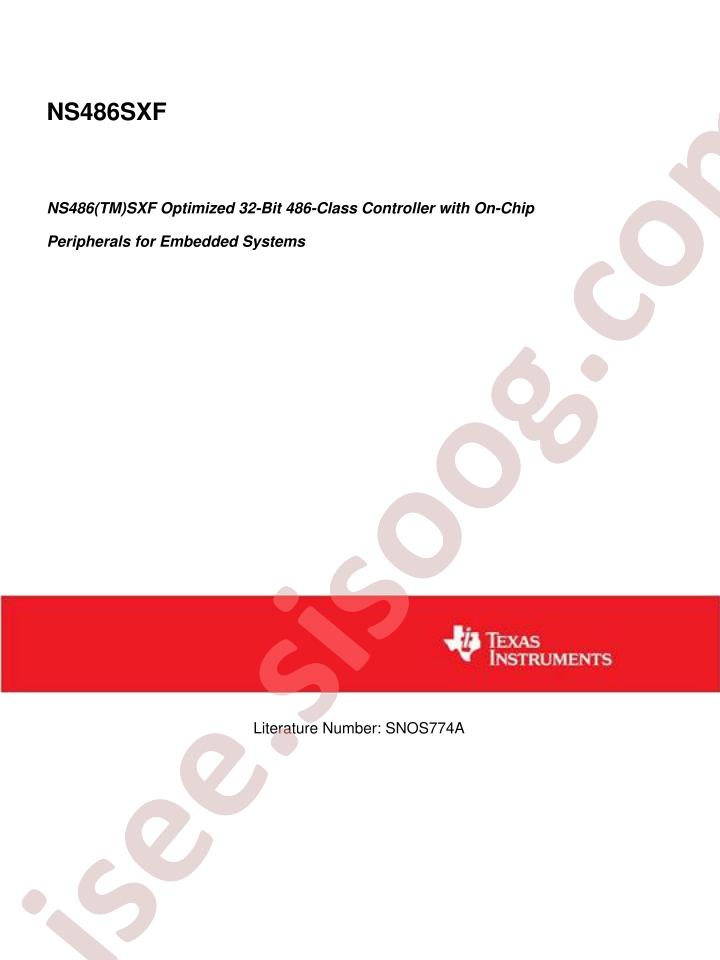

NS486SXF-25/NOPB Datasheet |
|---|
مشخصات
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: Other series
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: -
- Watchdog: -
- ADC (Bit): -
- DAC (Bit): -
- Datasheet: Texas Instruments NS486SXF-25/NOPB
- PWM (Bit): -
- 8Bit Timer: -
- LCD Module: Yes
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: 25MHz
- GPIO Ports Number: -
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: -
- Peripheral/Function: -
- Program Memory Type: -
- Direct Memory Access: -
- Program Storage Size: -
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: -
- Infrared Data Association: -
- Operating Temperature Range: 0°C~+70°C
- Secure Digital Input and Output: -
- Package: PQFP-160(28x28)
- Manufacturer: Texas Instruments
- Ethernet: -
- Base Part Number: NS486
- Display & Interface Controllers: LCD
- USB: -
- Speed: 25MHz
- SATA: -
- Operating Temperature: 0°C ~ 70°C (TA)
- Supplier Device Package: 160-PQFP (28x28)
- Voltage - I/O: 3.3V, 5.0V
- Number of Cores/Bus Width: 1 Core, 32-Bit
- Additional Interfaces: Access.bus, IrDA, Microwire, PCMCIA, UART
- Security Features: -
- Packaging: Tray
- RAM Controllers: DRAM
- Graphics Acceleration: No
- Series: -
- Package / Case: 160-BFQFP
- Part Status: Active
- Co-Processors/DSP: -
- Core Processor: Intel486 SX
- detail: Intel486 SX Microprocessor IC - 1 Core, 32-Bit 25MHz 160-PQFP (28x28)
