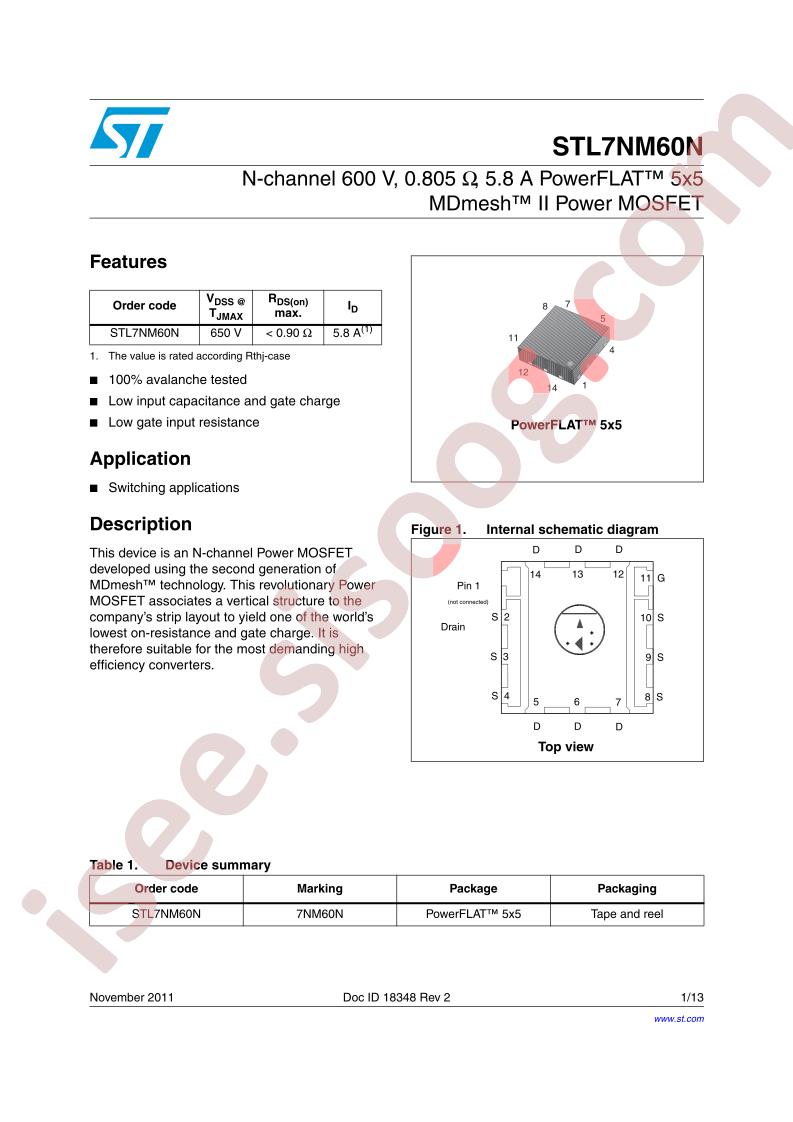

STL7NM60N دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STL7NM60N
|
|
حجم فایل
|
799.787
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
MDmesh™ II
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
600V
-
Current - Continuous Drain (Id) @ 25°C:
5.8A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
900mOhm @ 2.5A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
14nC @ 10V
-
Vgs (Max):
±25V
-
Input Capacitance (Ciss) (Max) @ Vds:
363pF @ 50V
-
FET Feature:
-
-
Power Dissipation (Max):
68W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
14-PowerFLAT™ (5x5)
-
Package / Case:
14-PowerVQFN
-
Base Part Number:
STL7
-
detail:
N-Channel 600V 5.8A (Tc) 68W (Tc) Surface Mount 14-PowerFLAT™ (5x5)
