دیتاشیت SN74HC563N
مشخصات دیتاشیت
| نام دیتاشیت | SN54HC563, SN74HC563 |
|---|---|
| حجم فایل | 914.496 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 15 |
دانلود دیتاشیت SN54HC563, SN74HC563 |

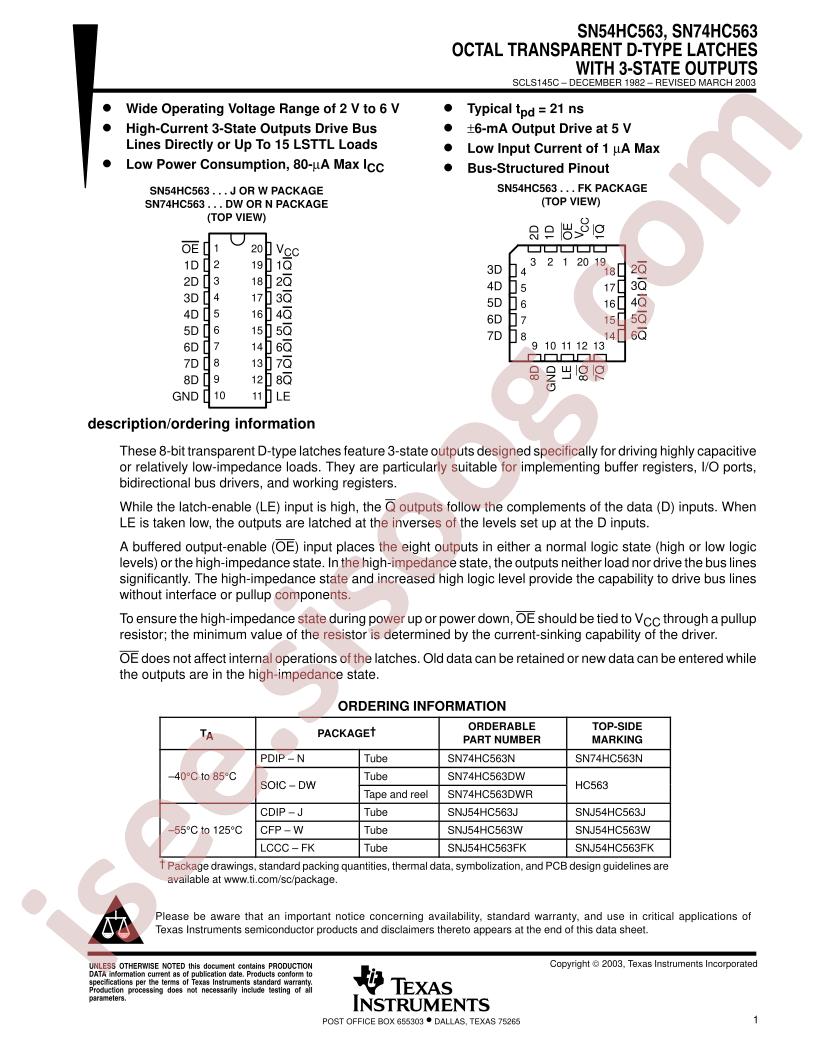

SN54HC563, SN74HC563 Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74HC
- Category: Logic ICs/Latches
- Datasheet: Texas Instruments SN74HC563N
- Logic Type: D-Typelocking Latch
- Output Type: Tri-State
- Sink Current: 7.8mA
- Source Current: 7.8mA
- Supply Voltage: 2V~6V
- Propagation Delay: 23ns
- OperatingTemperature: -40°C~+85°C
- Package: PDIP-20
- Manufacturer: Texas Instruments
- Delay Time - Propagation: 23ns
- Supplier Device Package: 20-PDIP
- Package / Case: 20-DIP (0.300", 7.62mm)
- Circuit: 8:8
- Mounting Type: Through Hole
- Base Part Number: SN74HC5
- Packaging: Tube
- Voltage - Supply: 2V ~ 6V
- Current - Output High, Low: 7.8mA, 7.8mA
- Independent Circuits: 1
- Operating Temperature: -40°C ~ 85°C
- Part Status: Active
- detail: D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-PDIP
