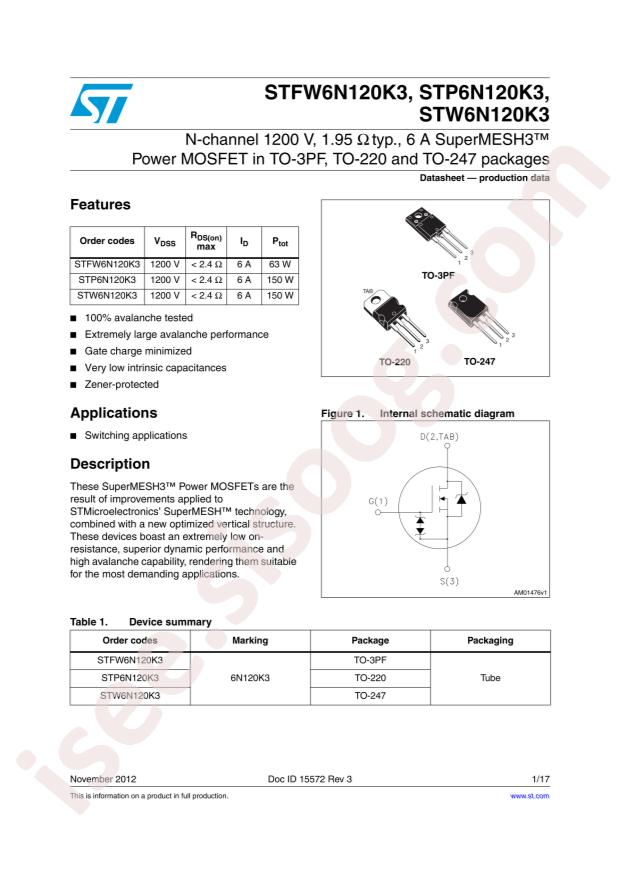

STP6N120K3 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STP6N120K3
|
|
حجم فایل
|
68.853
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
17
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STP6N120K3
-
Power Dissipation (Pd):
150W
-
Drain Source Voltage (Vdss):
1.2kV
-
Continuous Drain Current (Id):
6A
-
Gate Threshold Voltage (Vgs(th)@Id):
5V@100uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
2.4Ω@10V,2.5A
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
SuperMESH3™
-
Packaging:
Tube
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
1200V
-
Current - Continuous Drain (Id) @ 25°C:
6A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
2.4Ohm @ 2.5A, 10V
-
Vgs(th) (Max) @ Id:
5V @ 100µA
-
Gate Charge (Qg) (Max) @ Vgs:
34nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
1050pF @ 100V
-
FET Feature:
-
-
Power Dissipation (Max):
150W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220
-
Package / Case:
TO-220-3
-
Base Part Number:
STP6N
-
detail:
N-Channel 1200V 6A (Tc) 150W (Tc) Through Hole TO-220
