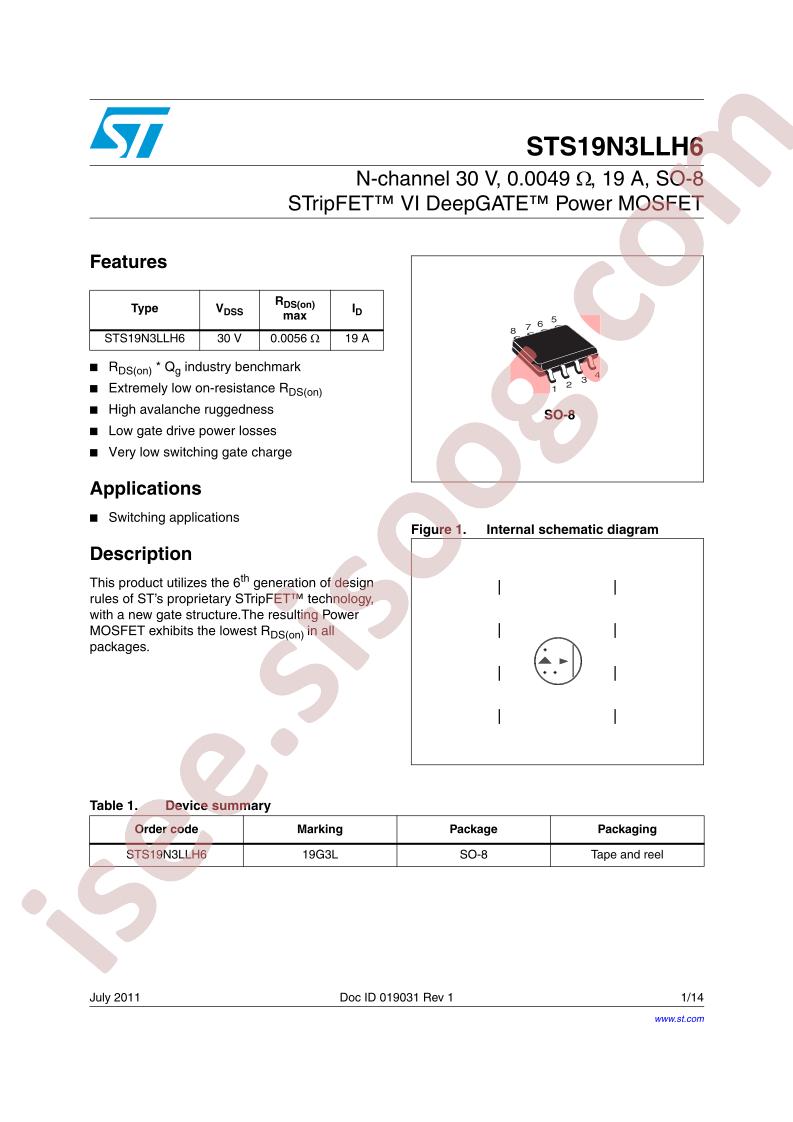

STS19N3LLH6 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STS19N3LLH6
|
|
حجم فایل
|
878.476
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
DeepGATE™, STripFET™ VI
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
19A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
5.6mOhm @ 9.5A, 10V
-
Vgs(th) (Max) @ Id:
1V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
17nC @ 15V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
1690pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
2.7W (Ta)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-SO
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Base Part Number:
STS19
-
detail:
N-Channel 30V 19A (Tc) 2.7W (Ta) Surface Mount 8-SO
