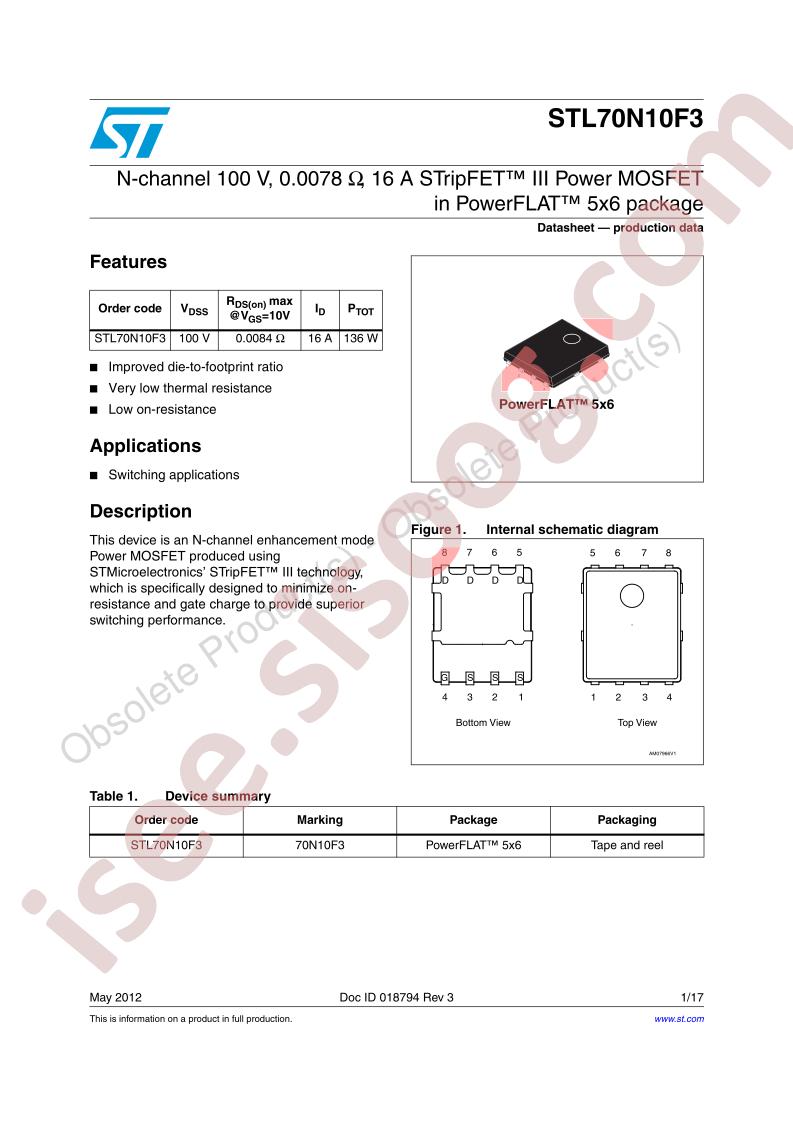

STL70N10F3 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STL70N10F3
|
|
حجم فایل
|
936.878
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
17
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
STripFET™ III
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
100V
-
Current - Continuous Drain (Id) @ 25°C:
82A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
8.4mOhm @ 8A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
56nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
3210pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
136W (Tc)
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
PowerFlat™ (5x6)
-
Package / Case:
8-PowerVDFN
-
Base Part Number:
STL70
-
detail:
N-Channel 100V 82A (Tc) 136W (Tc) Surface Mount PowerFlat™ (5x6)
