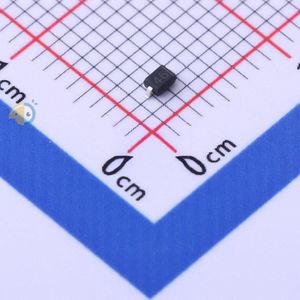

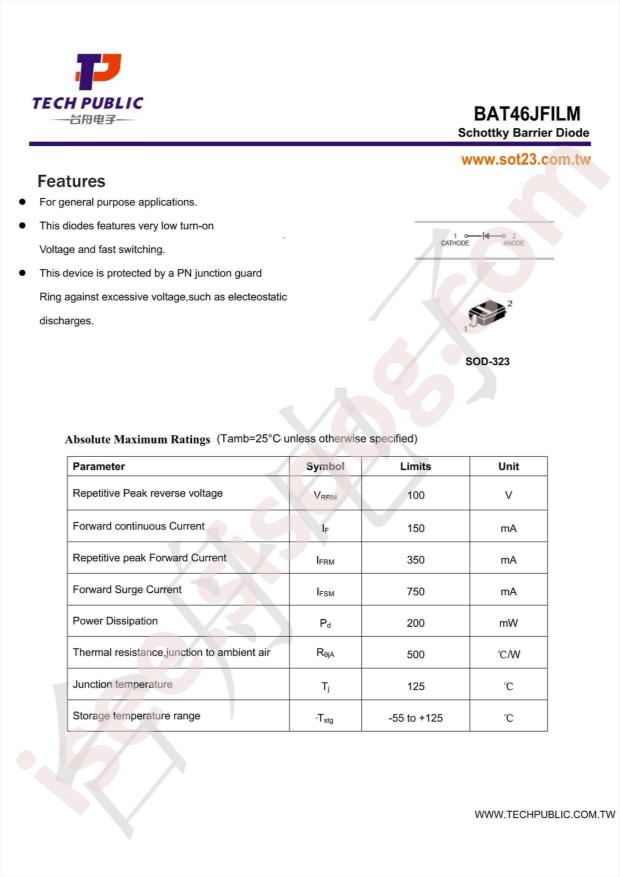

BAT46JFILM دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
BAT46JFILM
|
|
حجم فایل
|
54.132
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
3
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
TECH PUBLIC BAT46JFILM
-
Diode Configuration:
Single
-
Reverse Voltage (Vr):
100V
-
Forward Voltage (Vf@If):
1V@250mA
-
Reverse Leakage Current (Ir):
5uA@75V
-
Average Rectified Current (Io):
150mA
-
Package:
SOD-323
-
Manufacturer:
TECH PUBLIC
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
100V
-
Current - Average Rectified (Io):
150mA (DC)
-
Voltage - Forward (Vf) (Max) @ If:
450mV @ 10mA
-
Speed:
Small Signal =< 200mA (Io), Any Speed
-
Current - Reverse Leakage @ Vr:
5µA @ 75V
-
Capacitance @ Vr, F:
10pF @ 0V, 1MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
SC-76, SOD-323
-
Supplier Device Package:
SOD-323
-
Operating Temperature - Junction:
150°C (Max)
-
Base Part Number:
BAT46
-
detail:
Diode Schottky 100V 150mA (DC) Surface Mount SOD-323
