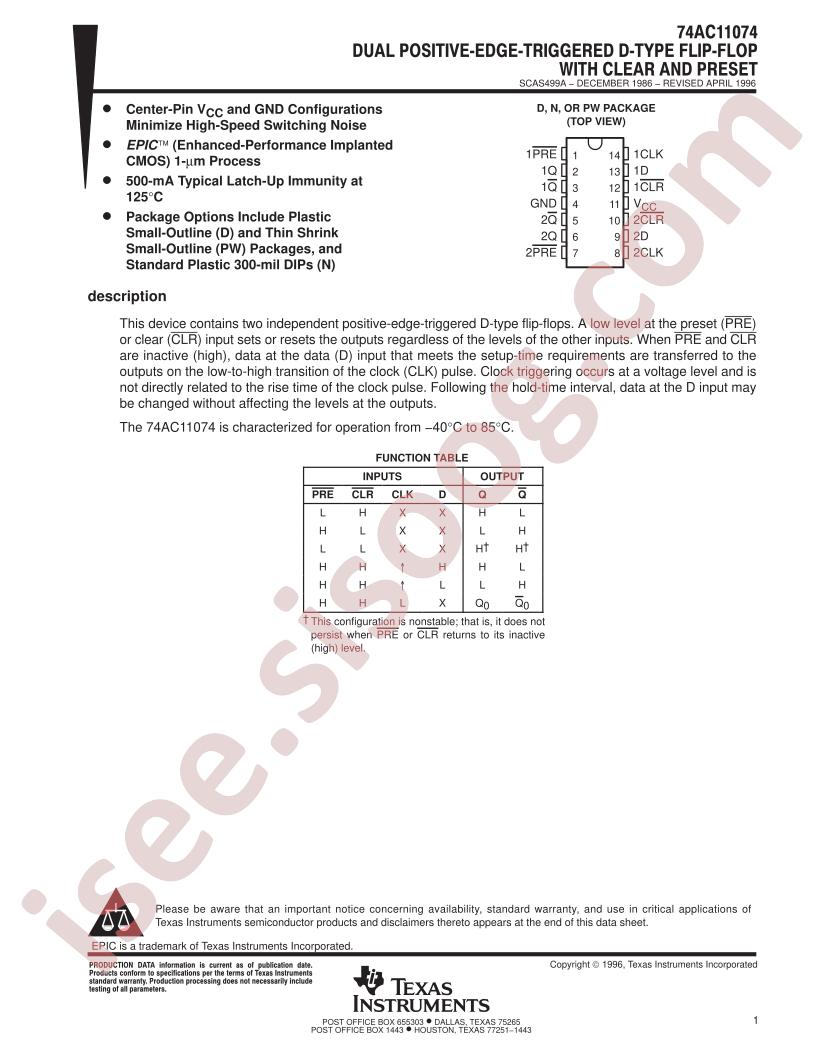

74AC11074 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
74AC11074
|
|
حجم فایل
|
716.672
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
15
|
مشخصات فنی
-
RoHS:
true
-
Type:
D-Type
-
Series:
74AC
-
Category:
Logic ICs/Flip Flops
-
Function:
置位和复位
-
Datasheet:
Texas Instruments 74AC11074N
-
Output Type:
互补型
-
Sink Current:
24mA
-
Trigger Type:
上升沿
-
Source Current:
24mA
-
Supply Voltage:
3V~5.5V
-
Clock Frequency:
150MHz
-
Input Capacitance:
3.5pF
-
Number of Elements:
2
-
Operating Temperature:
-40°C~+85°C
-
Quiescent Current (Iq):
4uA
-
Maximum Propagation Delay:
7.5ns@5V,50pF
-
Number of Bits per Element:
1
-
Package:
PDIP-14
-
Manufacturer:
Texas Instruments
-
Max Propagation Delay @ V, Max CL:
7.5ns @ 5V, 50pF
-
Package / Case:
14-DIP (0.300", 7.62mm)
-
Current - Quiescent (Iq):
4µA
-
Base Part Number:
74AC11
-
Supplier Device Package:
14-PDIP
-
Packaging:
Tube
-
Current - Output High, Low:
24mA, 24mA
-
Mounting Type:
Through Hole
-
Voltage - Supply:
3V ~ 5.5V
-
Part Status:
Active
-
detail:
Flip Flop 2 Element D-Type 1 Bit Positive Edge 14-DIP (0.300", 7.62mm)
